Covers
Right cover assembly
Remove the right cover assembly
1. Open the top and rear door assemblies.
2. Remove one screw (callout 1), and then starting at the rear vertical edge, release five tabs (callout
2) and remove the right cover assembly (callout 3).
NOTE: Before proceeding, take note of the locations of the tabs (callout 1) on the back side of
the cover. See
Figure 1-9 Remove the right cover (2 of 2) on page 18.

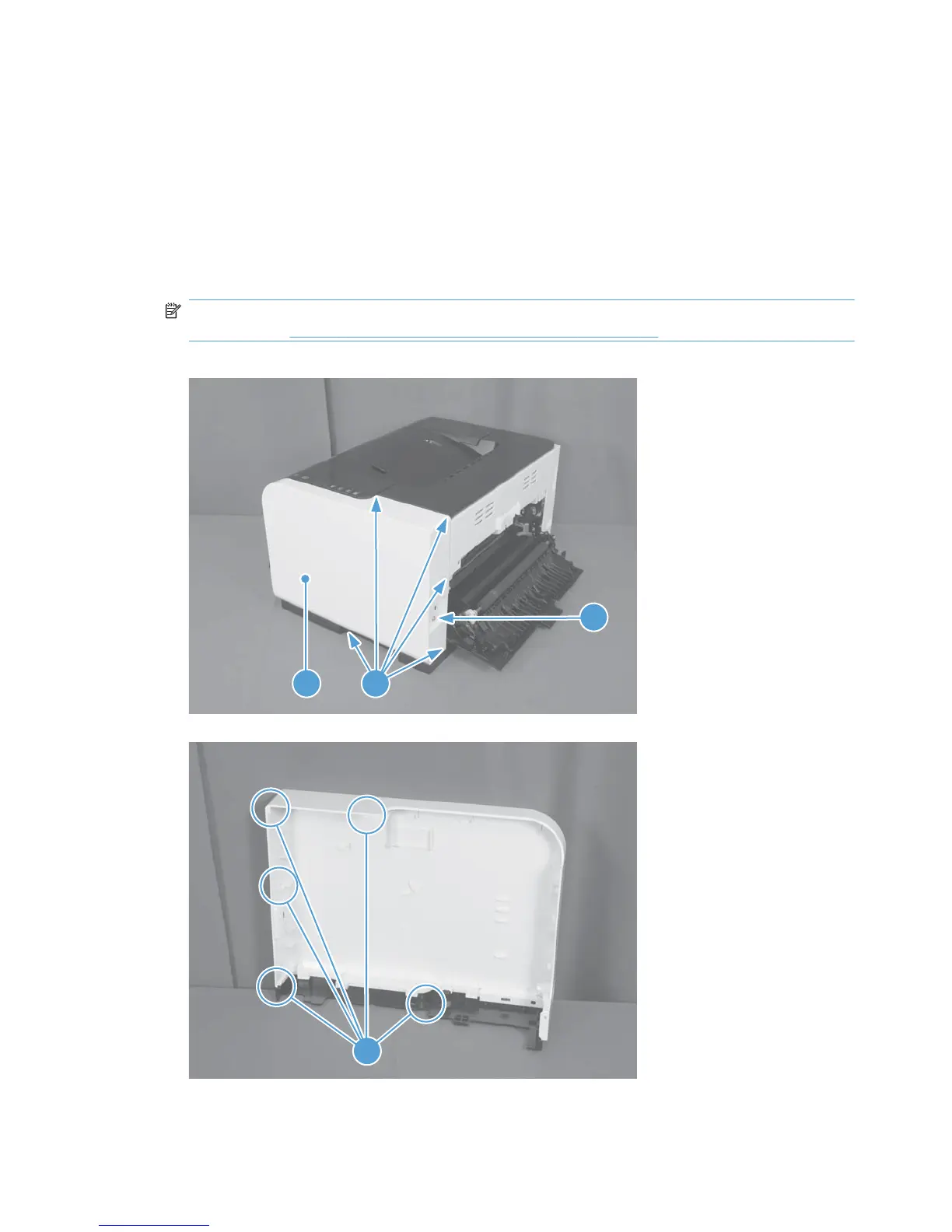

Figure 1-8 Remove the right cover (1 of 2)
3
1
2
Figure 1-9 Remove the right cover (2 of 2)
2
18 Chapter 1 Removal and replacement ENWW
