3. Release two tabs (callout inlet part (callout 3).

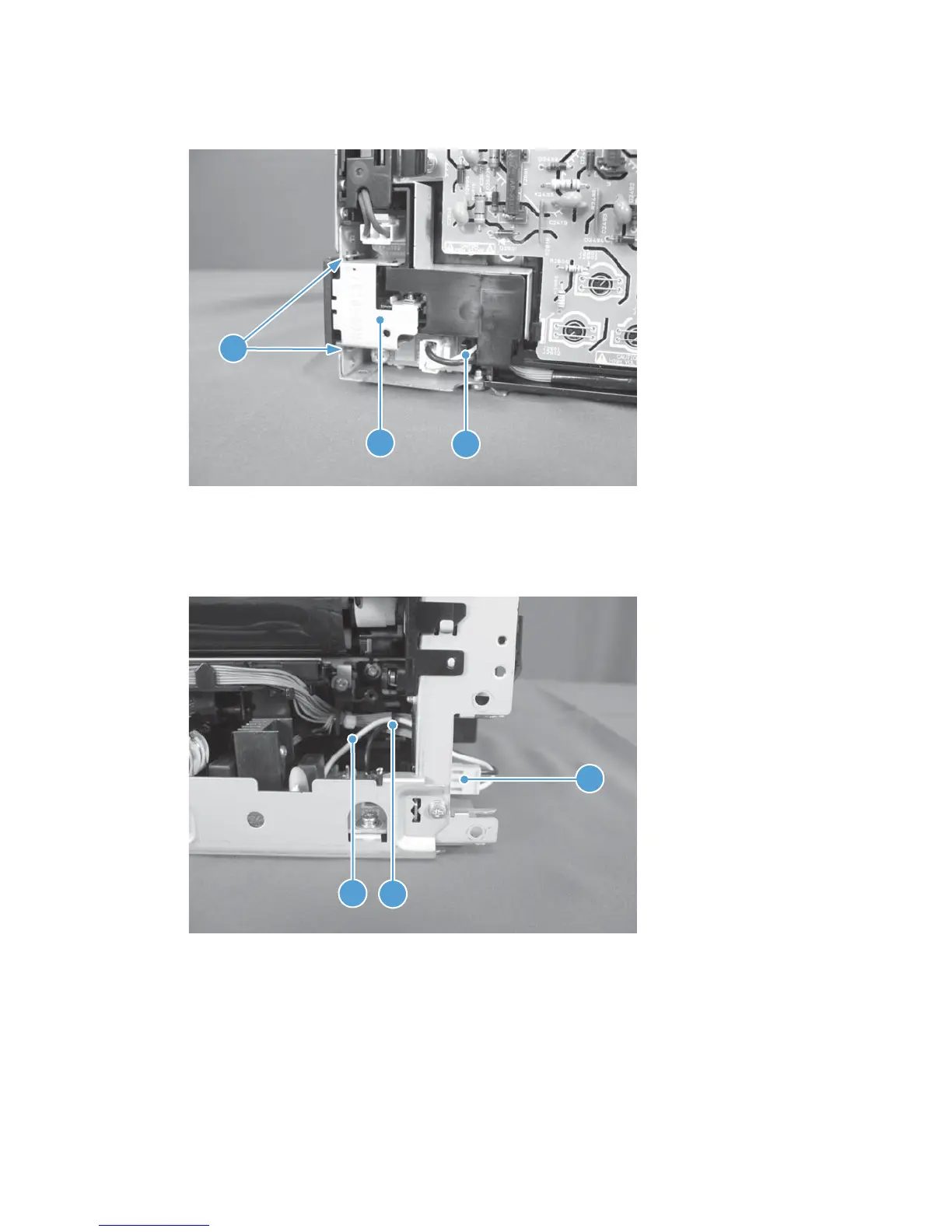

Figure 1-58 Remove the low-voltage power supply assembly (2 of 6)
3
2
1
4. Disconnect one connector (callout 1).
5. Release the cables (callout 3) from the cable guide (callout 2).
Figure 1-59 Remove the low-voltage power supply assembly (3 of 6)
1
3
2
6. Turn the product rear side up.
50 Chapter 1 Removal and replacement ENWW
