4. Remove the rear door and rear-lower cover.

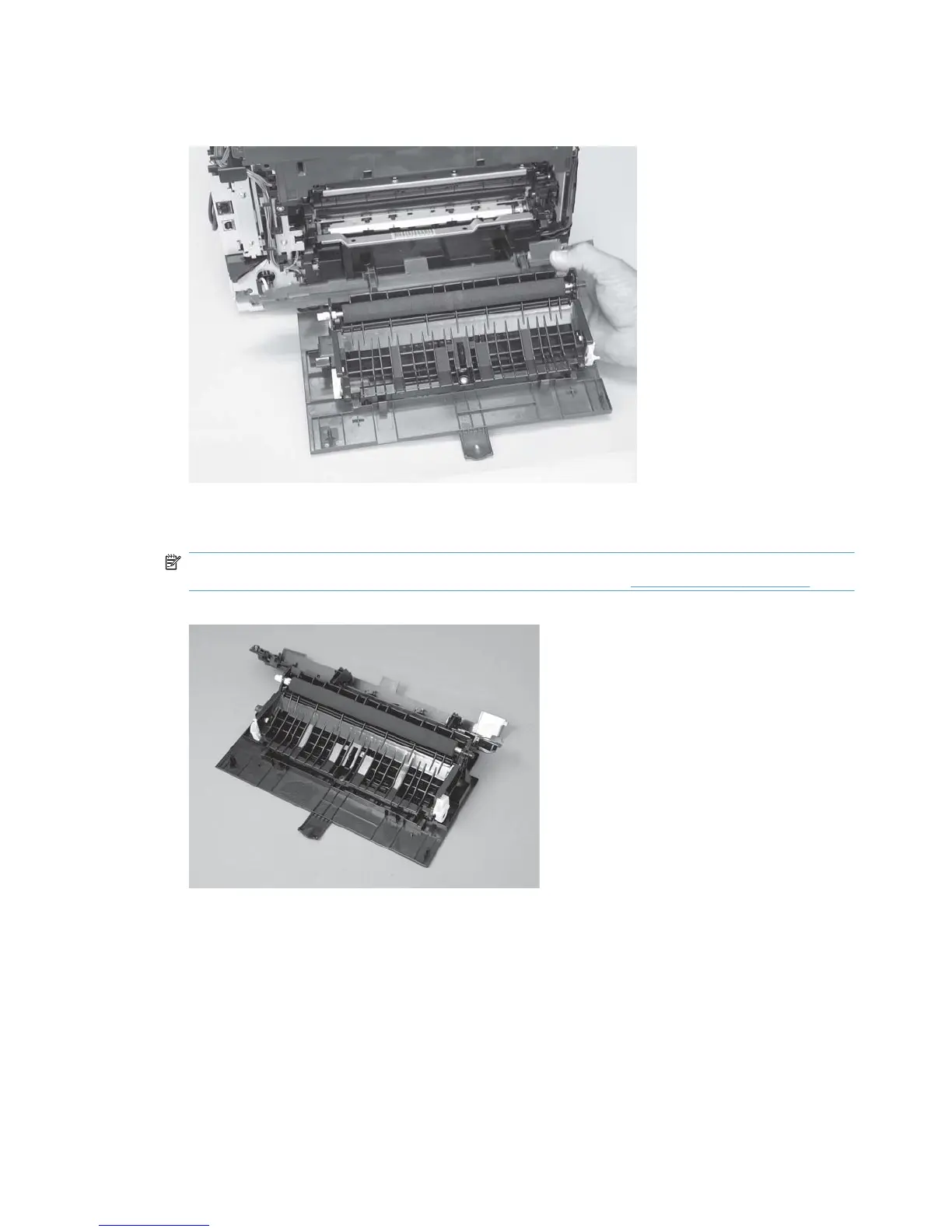

Figure 1-36 Remove the rear door and rear-lower cover (3 of 4)
5. Rotate the rear-door hinge arms and slide it off of the hinge pins on the rear-lower cover to
separate the rear cover from the rear door.
NOTE: If you are installing a replacement rear-lower door, remove the feed assembly from the
discarded door, and then install it on the replacement door. See
Feed assembly on page 9.
Figure 1-37 Remove the rear door and rear-lower cover (4 of 4)
24 Chapter 1 Removal and replacement ENWW
