HP LP3065 User Manual

Hewlett-Packard GmbH, HQ-TRE, Herrenberger Strasse 140, 71034 Boeblingen, Germany

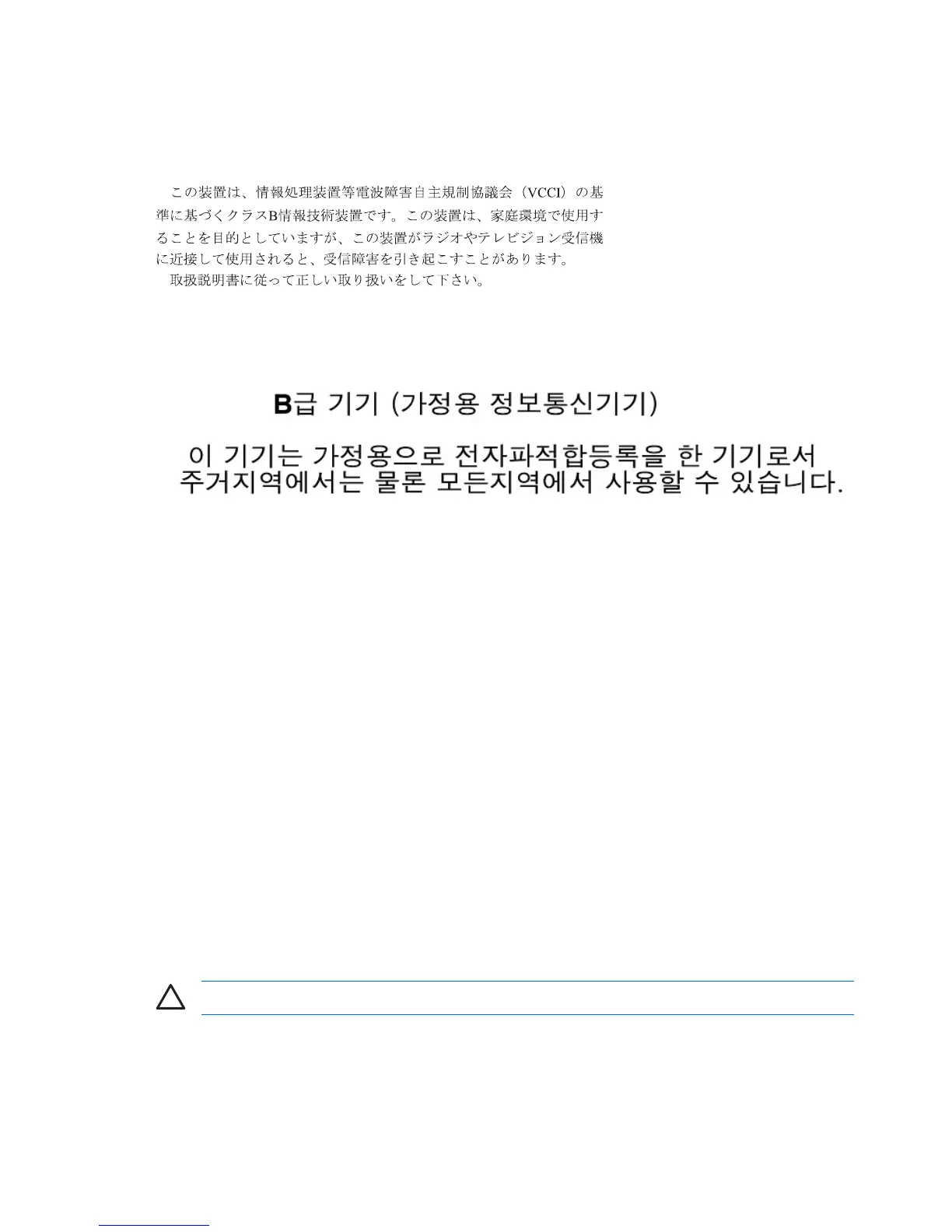

Japanese Notice
Korean Notice
Power Cord Set Requirements
The monitor power supply is provided with Automatic Line Switching (ALS). This feature allows the
monitor to operate on input voltages between 100–120V or 200–240V.
The power cord set (flexible cord or wall plug) received with the monitor meets the requirements for use
in the country where your purchased the equipment.
If you need to obtain a power cord for a different country, you should purchase a power cord that is
approved for use in that country.
The power cord must be rated for the product and for the voltage and current marked on the product's
electrical ratings label. The voltage and current rating of the cord should be greater than the voltage and
current rating marked on the product. In addition, the cross-sectional area of the wire must be a minimum
of 0.75 mm² or 18 AWG, and the length of the cord must be between 6 feet (1.8m) and 12 feet (3.6 m).
If you have questions about the type of power cord to use, contact your HP authorized service provider.
A power cord should be routed so that it is not likely to be walked on or pinched by items placed upon
it or against it. Particular attention should be paid to the plug, electrical outlet, and the point where the
cord exits from the product.
Japanese Power Cord Requirements
For use in Japan, use only the power cord received with this product.
CAUTION Do not use the power cord received with this product on any other products.
26 Appendix C Agency Regulatory Notices ENWW

HP LP3065 Specifications

General

Pixel pitch	0.250 mm
Response time	6 ms
Display diagonal	30 \
Display resolution	2560 x 1600 pixels
Contrast ratio (typical)	1000:1
Display number of colors	16.78 million colors
Display scanning frequency	Horizontal frequency: 100 kHz, Vertical frequency: 60 Hz
Display brightness (typical)	300 cd/m²
Supported graphics resolutions	2560 x 1600 (WQXGA)
UNSPSC-code	43211902
On/off switch	Yes
Audio included	No audio includedNo audio included at platform level
Security features	Kensington Lock-ready
Weight (imperial)	Unpacked30.6 lb lbs
Power requirements	Auto-Sensing, 100 to 240 VAC, 50 +/-3 Hz to 60 +/-3 Hz)
Display resolution at frequency	2560 x 1600 @ 60 Hz (native)
Dimensions (W x D x H) (imperial)	27.2 x 3.3 x 17.9 \
Product dimensions (with stand, imperial)	27.2 x 9.5 x 23.2 \
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Non-operating relative humidity (non-condensing)	5 - 85 %
Tilt angle range	-5 - 30 °
Height adjustment	100 mm
Cable lock slot type	Kensington
Panel mounting interface	100 x 100 mm
Power consumption (standby)	2 W
Power consumption (typical)	118 W
Certification	Australian ACA Approval, Canadian Requirements/CSA, CE Marking, China CCIB/CCEE Approval, CISPR Requirements, Eastern European Approvals, FCC Approval, German Ergonomic (TUV and GS Mark), ISO 9241-3, 7, 8 VDT Guidelines, ISO 13406-2 Pixel Defect Guidelines, Mexican NOM Approval, MIC Requirements (New Zealand), MPR-II Compliant, Nordic Approvals (Nemko, Fimko, Demko, Semko), S. Korean MIC Approval, Taiwan BSMI Approval, TCO 99 (emissions, ergonomics, environment), TUV-Ergo, UL Listed, VCCI Approvals, Microsoft Windows Certification (Microsoft Windows 98, Microsoft Windows 2000, and Microsoft Windows XP)
Product color	Black
Country of origin	China
I/O ports	One upstream, four downstream USB 2.0 Hub ports (cable included)
USB hub version	2.0
DVI-D ports quantity	3
DVI-I ports quantity	0
USB upstream port type	USB Type-B
USB Type-A downstream ports quantity	4

Weight and Dimensions

Depth (with stand)	240 mm
Height (with stand)	590 mm
Weight (with stand)	13400 g
Depth (without stand)	84 mm
Width (without stand)	692 mm
Height (without stand)	455 mm
