Scanner components
Before proceeding, separate the scanner lid or document feeder from the scan base. See Separate the
scanner lid or document feeder from the scan base on page 80.
Scan bezel
NOTE: The photos in the following procedure are of a model that has a document feeder. Other models
might look slightly different, but the procedure is the same.
CAUTION: Perform these procedures in a dust-free environment.
CAUTION: The components inside of the scan assembly are not captive when the bezel is removed.
1. Place the scan assembly glass-side-down, and remove three Torx T9 screws (callout 1).

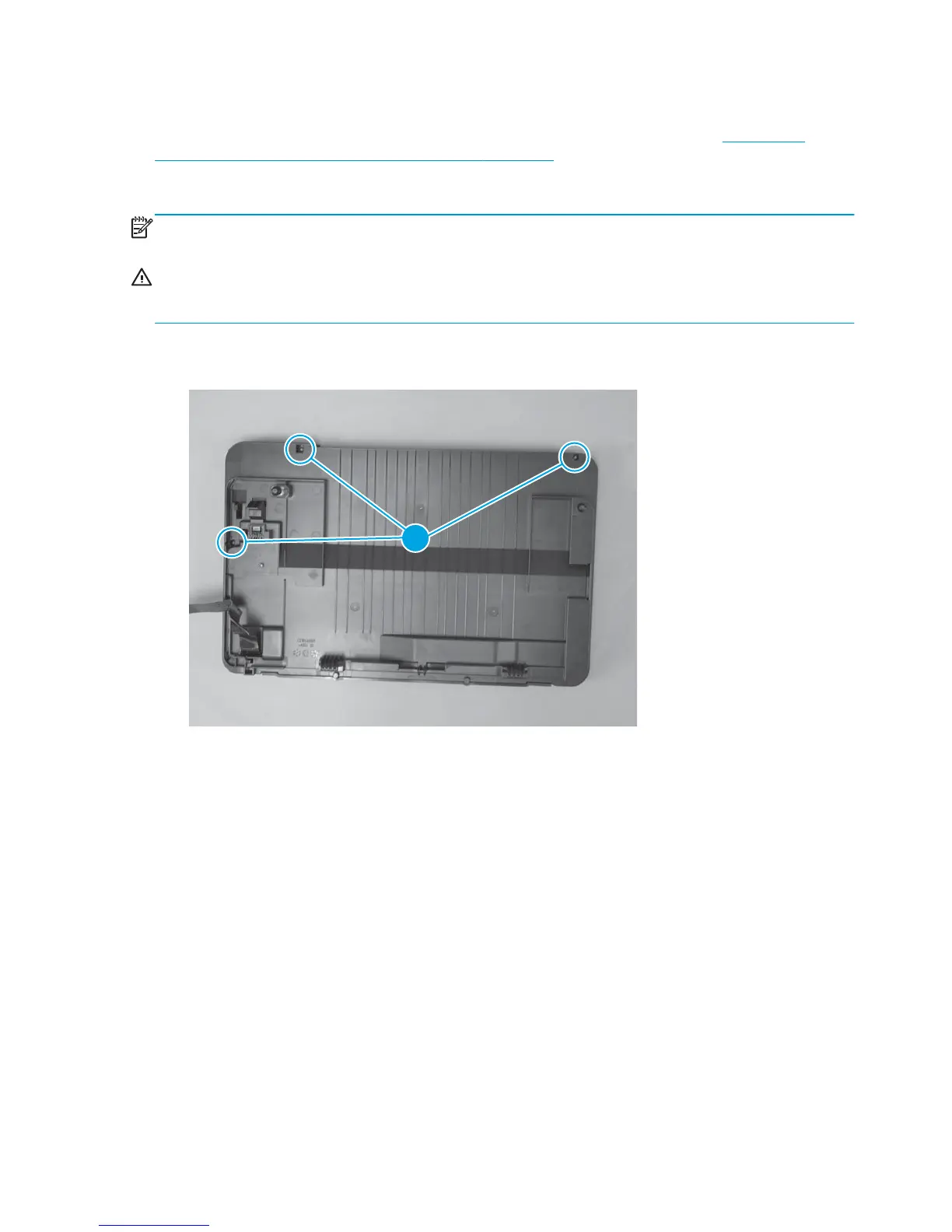

Figure 1-118 Remove the scan bezel (1 of 2)
1
82 Chapter 1 Removal and replacement ENWW
