Scan drive system
Before proceeding, remove the following components:
●
Scan bezel. See
Scan bezel on page 82.
NOTE: The photos in the following procedure are of a model that has a document feeder. Other models
might look slightly different, but the procedure is the same.
CAUTION: Perform these procedures in a dust-free environment.
CAUTION: The components inside of the scan assembly are not captive when the bezel is removed.
Remove the scan drive system
1. Lift the scan drive system out of the scanner, and turn it over.
CAUTION: The scan drive system is still connected to the scanner assembly by the FFC.
2. Disconnect the two FFC connectors (callout 1) and unthread the FFC from the guide (callout 2), and then
remove the scan drive system.

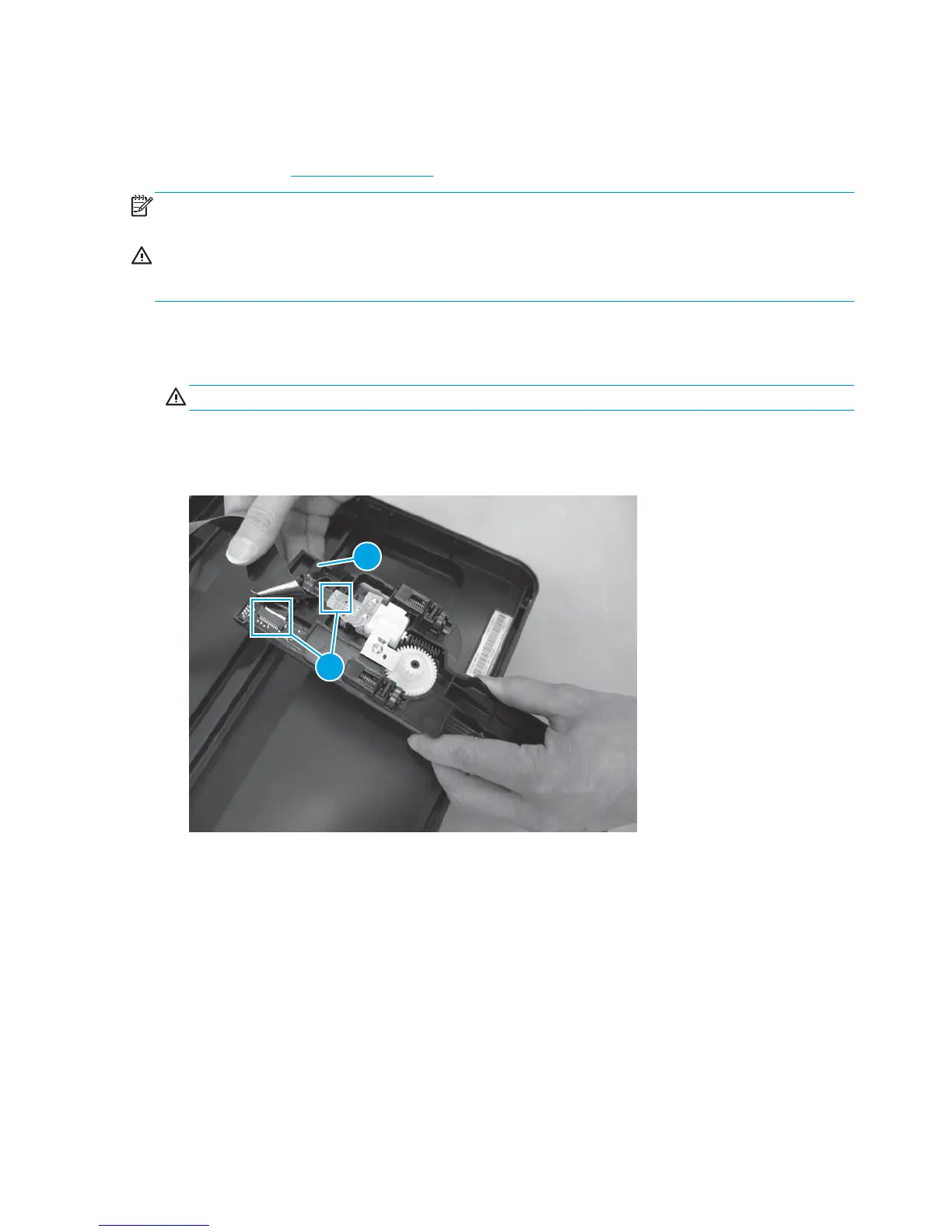

Figure 1-120 Remove the scan drive system
1
2
84 Chapter 1 Removal and replacement ENWW
