Scanner and flat cable cover (M176 model only)
Before proceeding, remove the following components:
●
Dust cover, input tray, and extension tray. See
Dust cover, input tray, and extension tray on page 9.
●
Left cover. See
Left cover on page 12.
Remove the scanner and flat cable cover

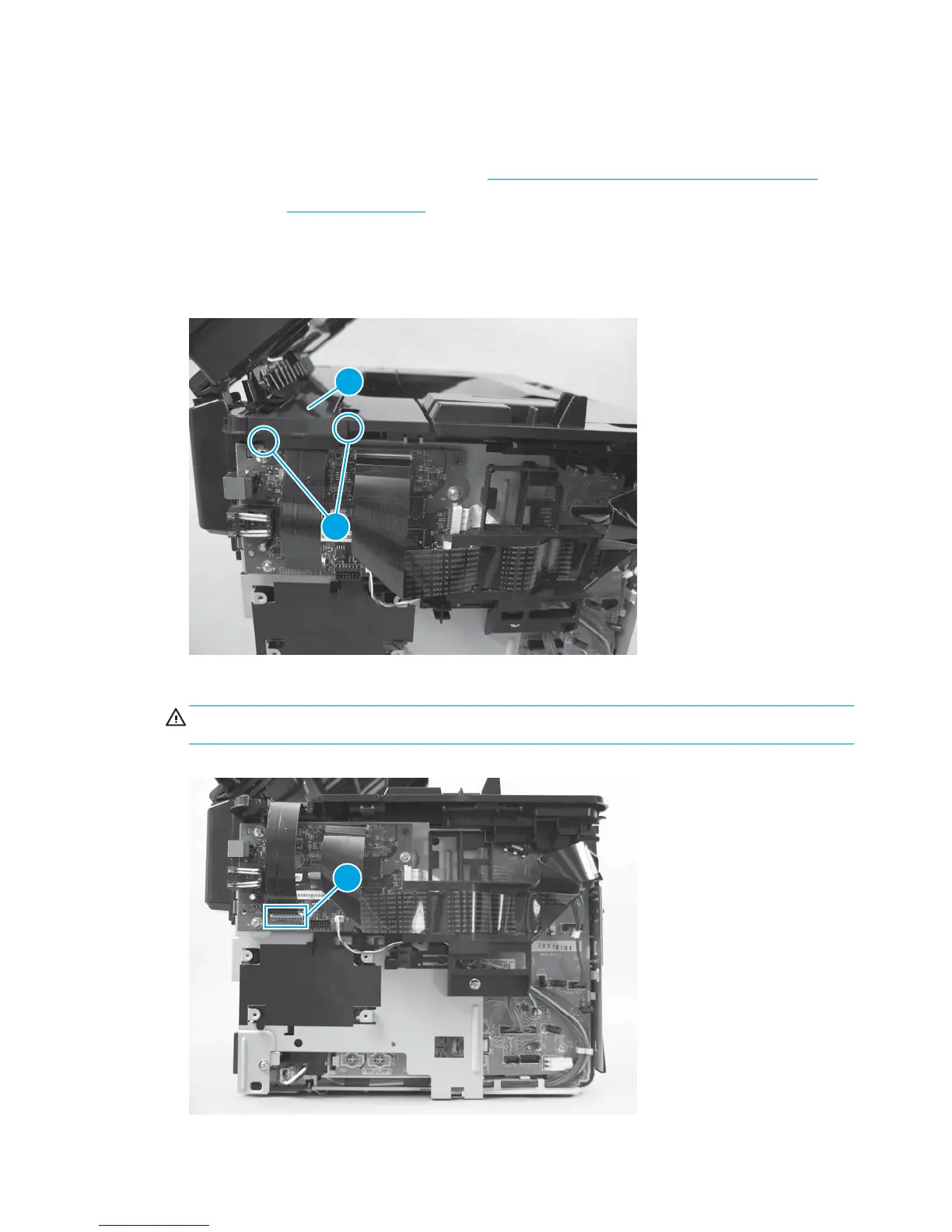

1. Release two tabs (callout 1), and then remove the flat cable cover (callout 2).
Figure 1-13 Remove the flat cable cover for the M176 model
1
2
2. Disconnect one FFC (callout 1).
CAUTION: Do not bend or fold the flat flexible cables (FFCs) during removal or installation. Also, do
not straighten pre-folds in the FFCs.
Figure 1-14 Remove the scanner for the M176 model (1 of 3)
1
16 Chapter 1 Removal and replacement ENWW
