Wireless PCA (M177 model)
CAUTION: ESD sensitive.
Before proceeding, remove the following components:
●
Left cover. See
Left cover on page 12.
NOTE: The FFC guide may look different than the one shown in this procedure.
Remove the wireless PCA (M177 model)
1. Disconnect one FFC (callout 1) from the formatter PCA.
CAUTION: Do not bend or fold the flat flexible cables (FFCs) during removal or installation. Do not
straighten pre-folds in the FFCs.

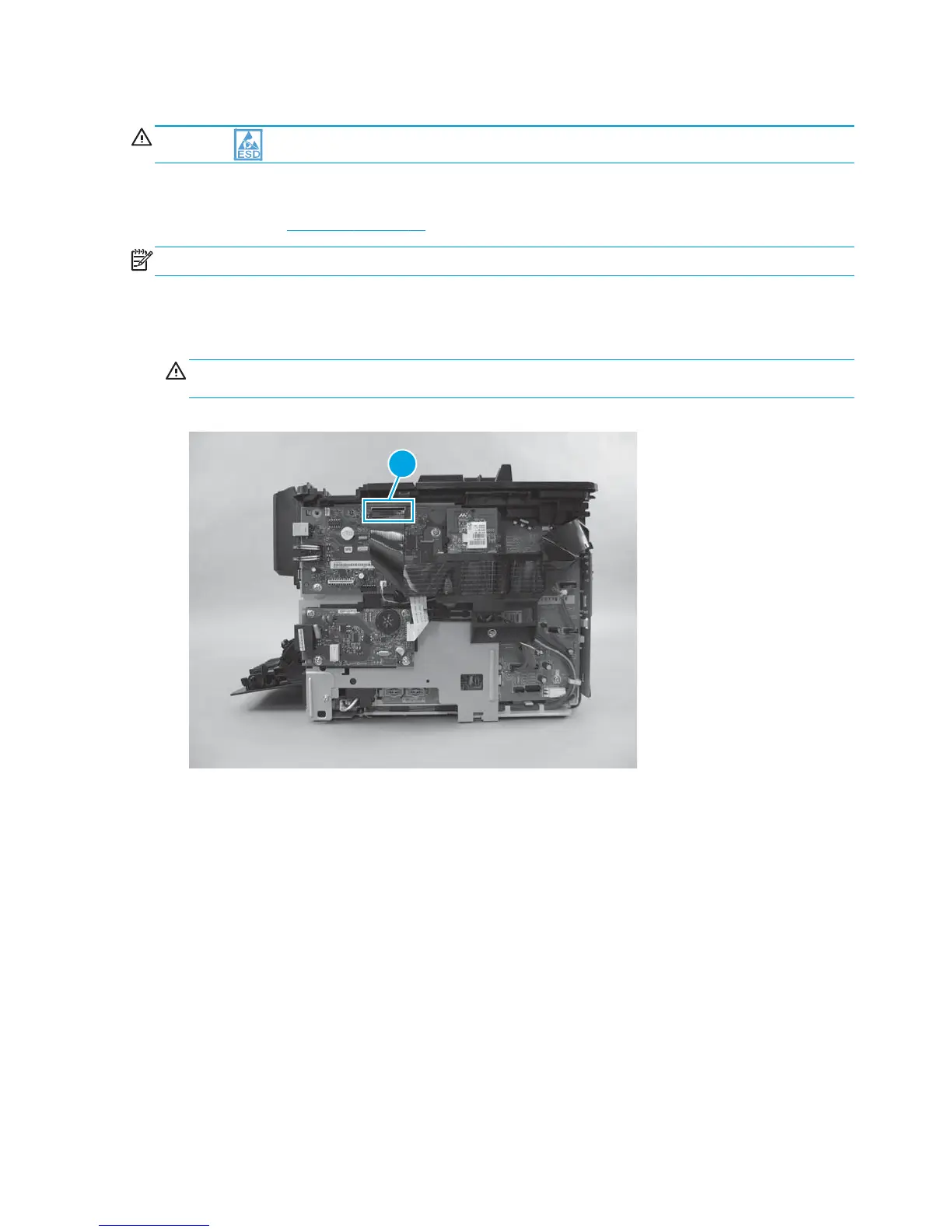

Figure 1-53 Remove the wireless PCA for the M177 model (1 of 3)
1
42 Chapter 1 Removal and replacement ENWW
