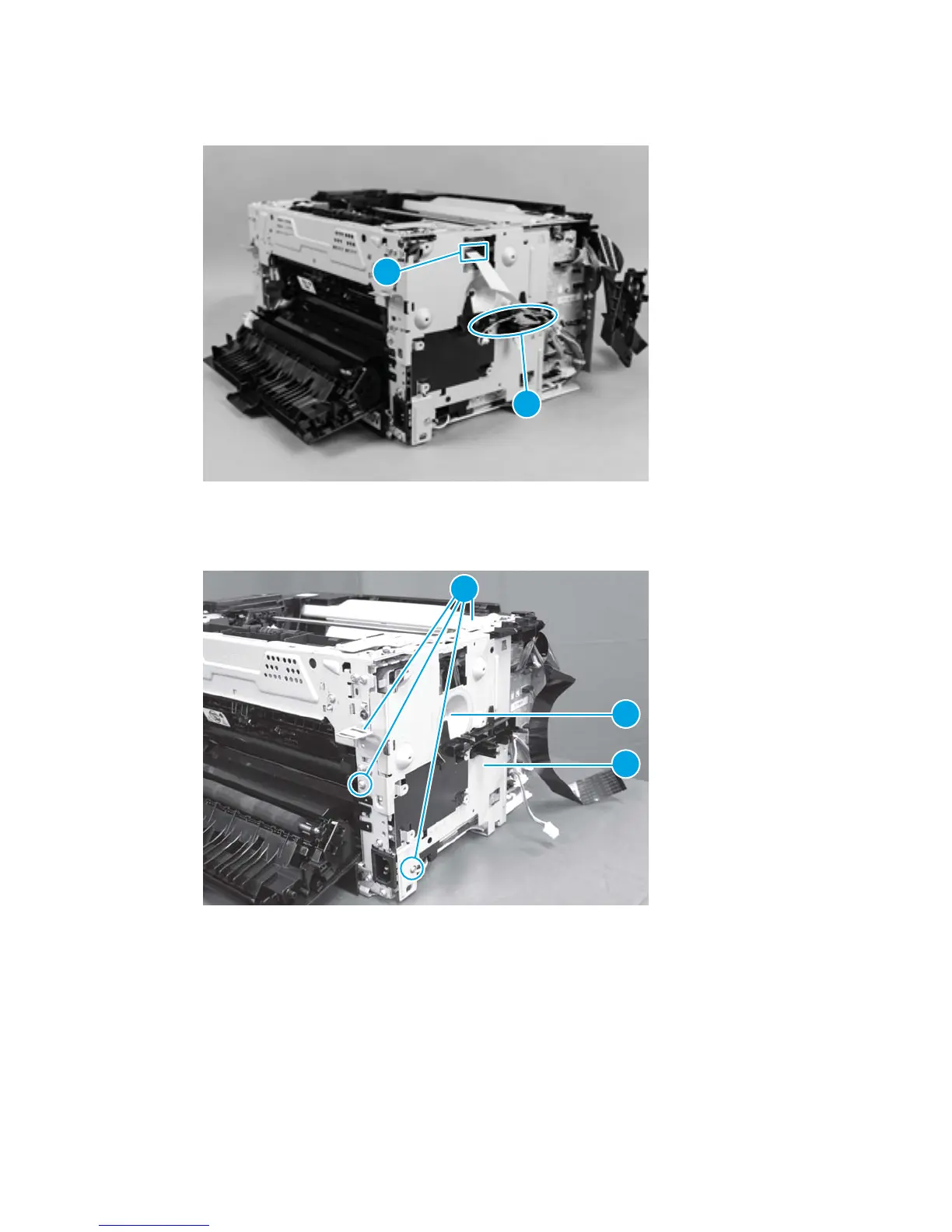

2. Disconnect the formatter-engine FFC (callout 1) and release the cables from the cable guides (callout 2).
Figure 1-74 Remove the fuser delivery assembly (2 of 9)
1
2
3. Remove four screws (callout 1) and one black screw (callout 2), and then remove the PCA plate (callout
3).
Figure 1-75 Remove the fuser delivery assembly (3 of 9)
1
2
3
ENWW Removal and replacement procedures 55
