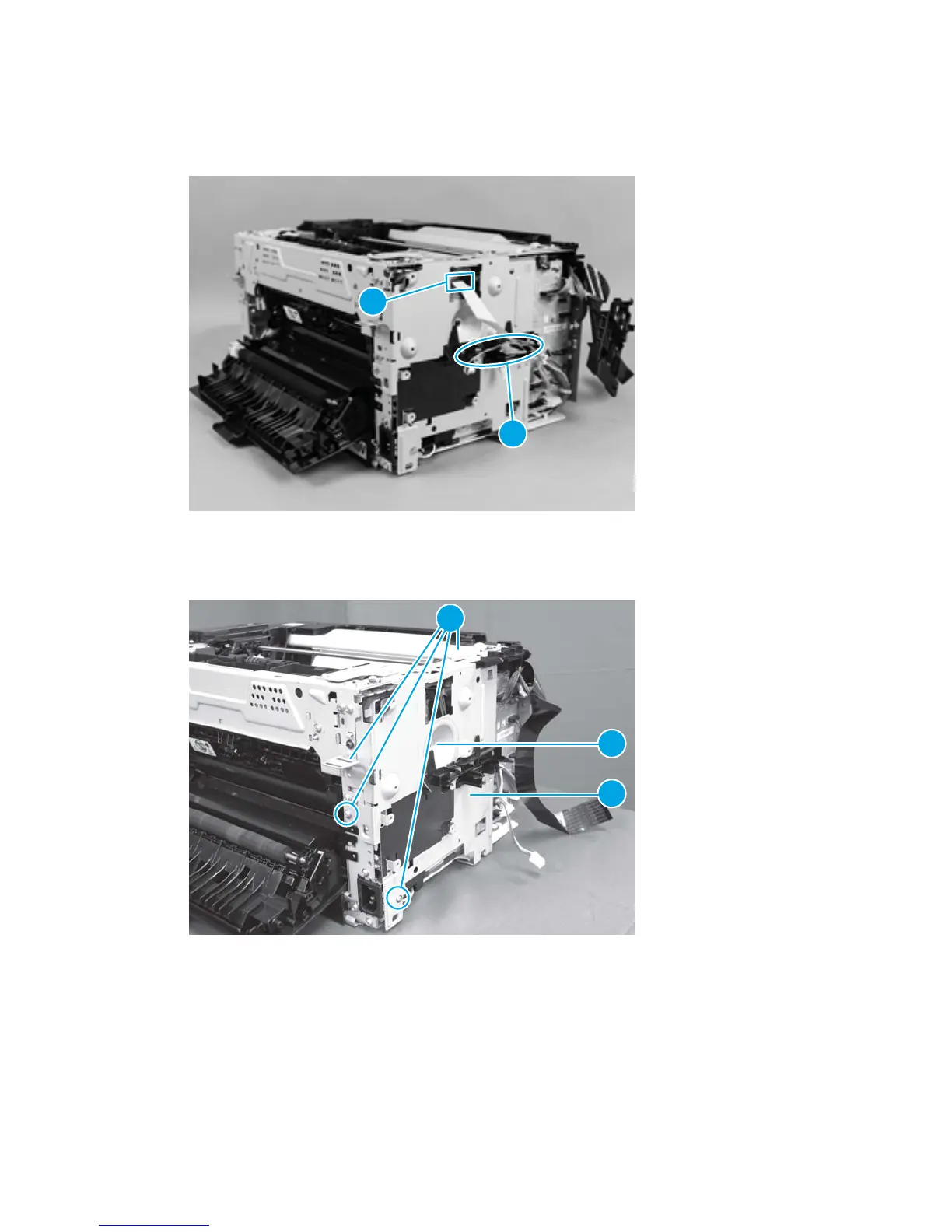

Remove the ITB assembly
1. Disconnect the formatter-engine FFC (callout 1) and release the cables from the cable guides (callout 2).
Figure 1-85 Remove the ITB assembly (1 of 17)
1
2
2. Remove four screws (callout 1) and one black screw (callout 2), and then remove the PCA plate (callout
3).
Figure 1-86 Remove the ITB assembly (2 of 17)
1
2
3
62 Chapter 1 Removal and replacement ENWW
