b.

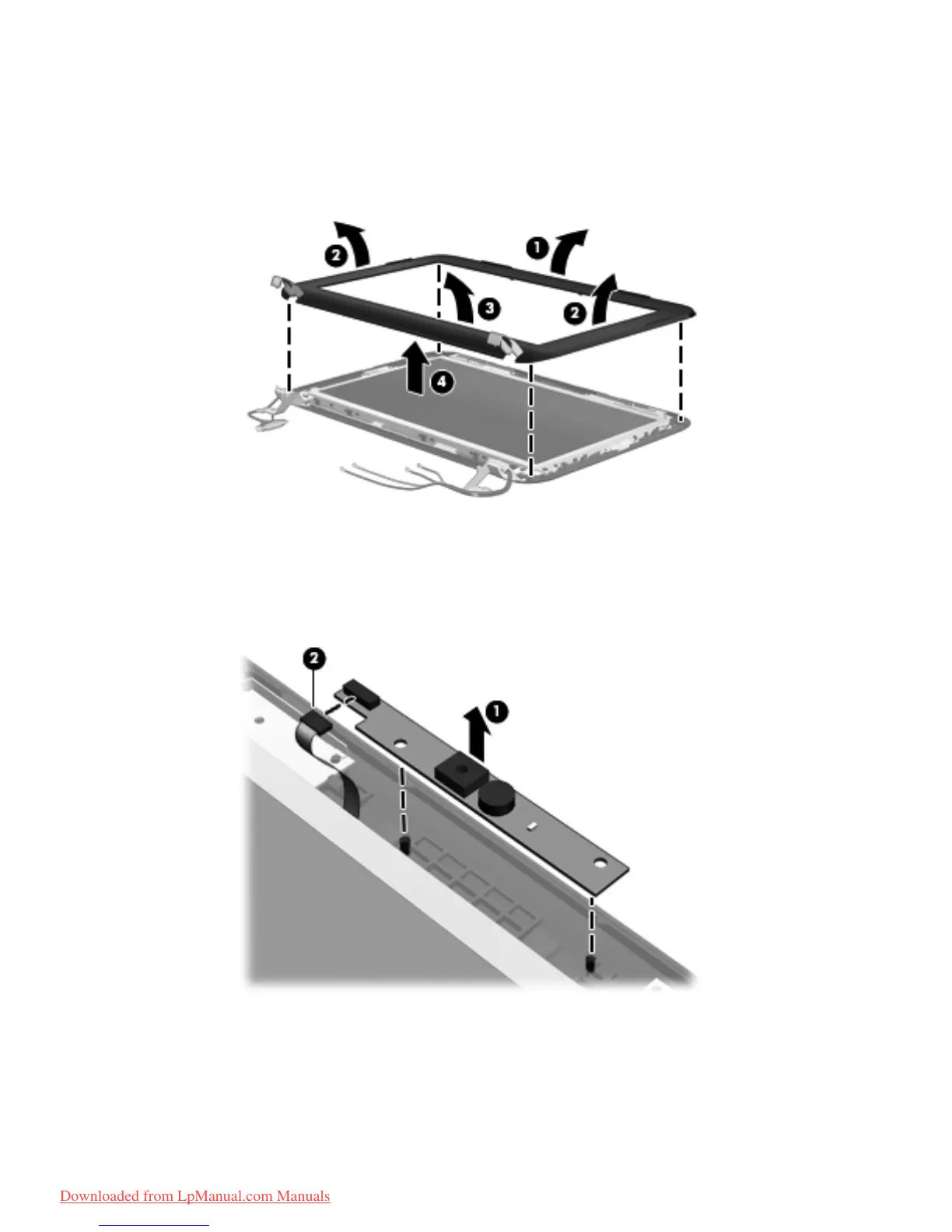

Remove the display bezel (4). The display bezel is available using the following spare
part numbers:
●
658504-001 — For use only on Compaq Mini CQ10 computer models
●
658503-001 — For use only on HP Mini 110 computer models
5. If it is necessary to replace the webcamera/microphone module:
a.
Detach and release the module (1) as far as the module cable allows. (The module is
attached to the display enclosure with double-sided tape.)
b.
Disconnect the module cable (2) from the module.
c. Remove the webcamera/microphone module. The webcamera/microphone module is
available using spare part number 658516-001.
Component replacement procedures
83
