9.

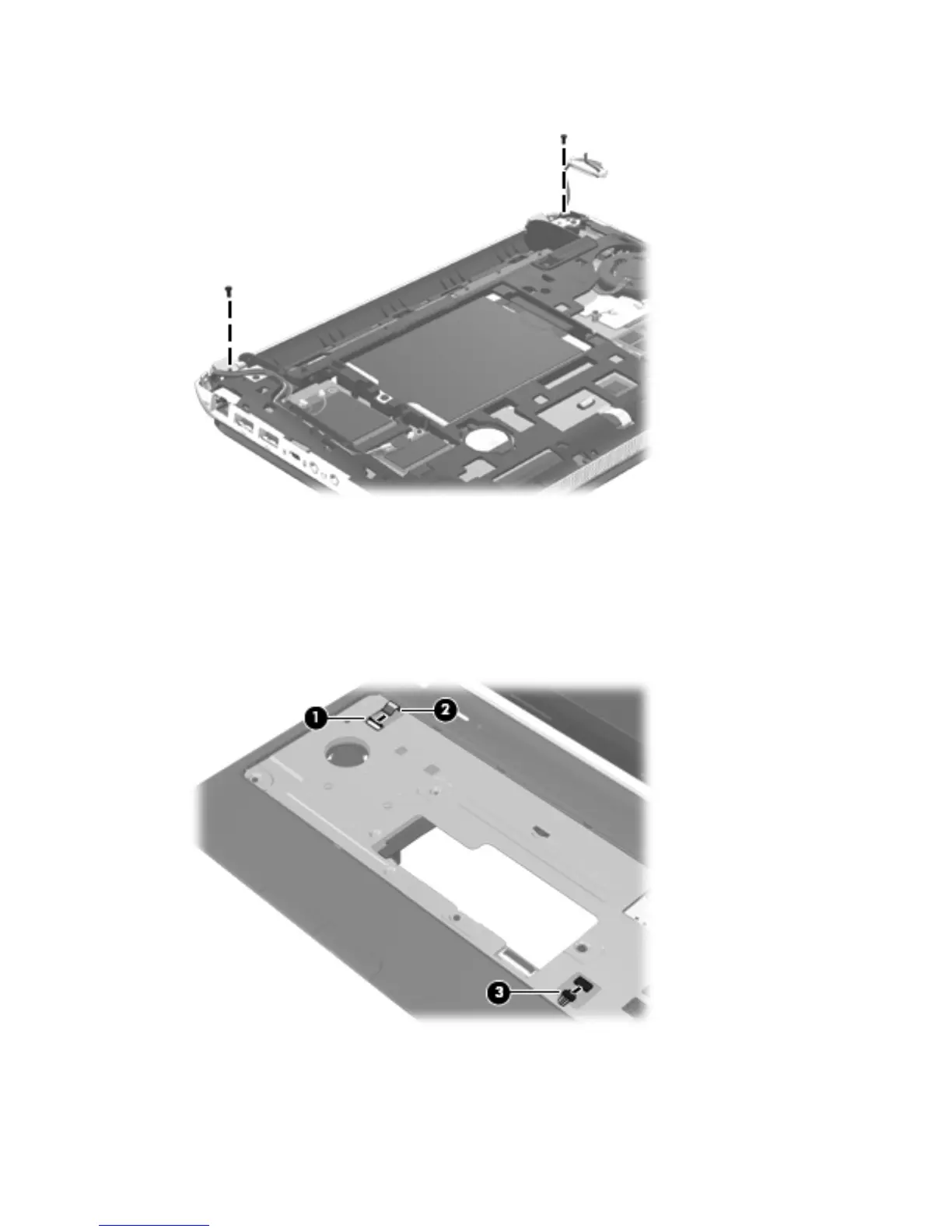

Remove the two Phillips PM2.0×5.0 screws that secure the top cover to the base enclosure.
10. Turn the computer right side up, with the front toward you.
11.
Open the computer as far as it will open.
12. Release the ZIF connector (1) to which the power button board cable is connected, and then
disconnect the power button board cable (2) from the system board.
13. Disconnect the speaker cable (3) from the system board.
52 Chapter 4 Removal and replacement procedures
