5.

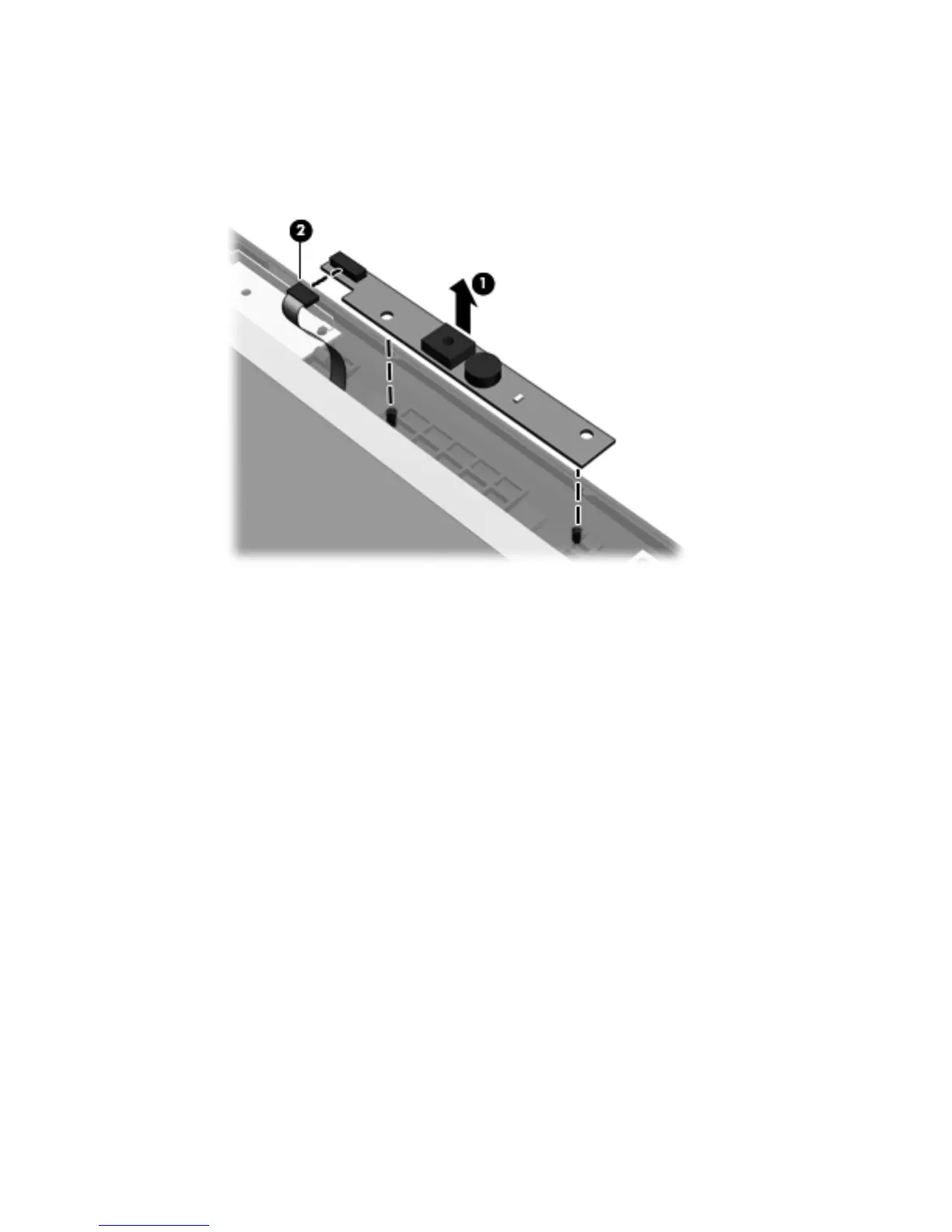

If it is necessary to replace the webcamera/microphone module:
a. Detach and release the module (1) as far as the module cable allows. (The module is
attached to the display enclosure with double-sided tape.)
b. Disconnect the module cable (2) from the module.
c. Remove the webcamera/microphone module. The webcamera/microphone module is
available using spare part number 658516-001.
6. If it is necessary to replace the display panel:
a. Remove the six Phillips PM2.0×4.6 screws (1) that secure the display panel to the
display enclosure.
64 Chapter 4 Removal and replacement procedures
