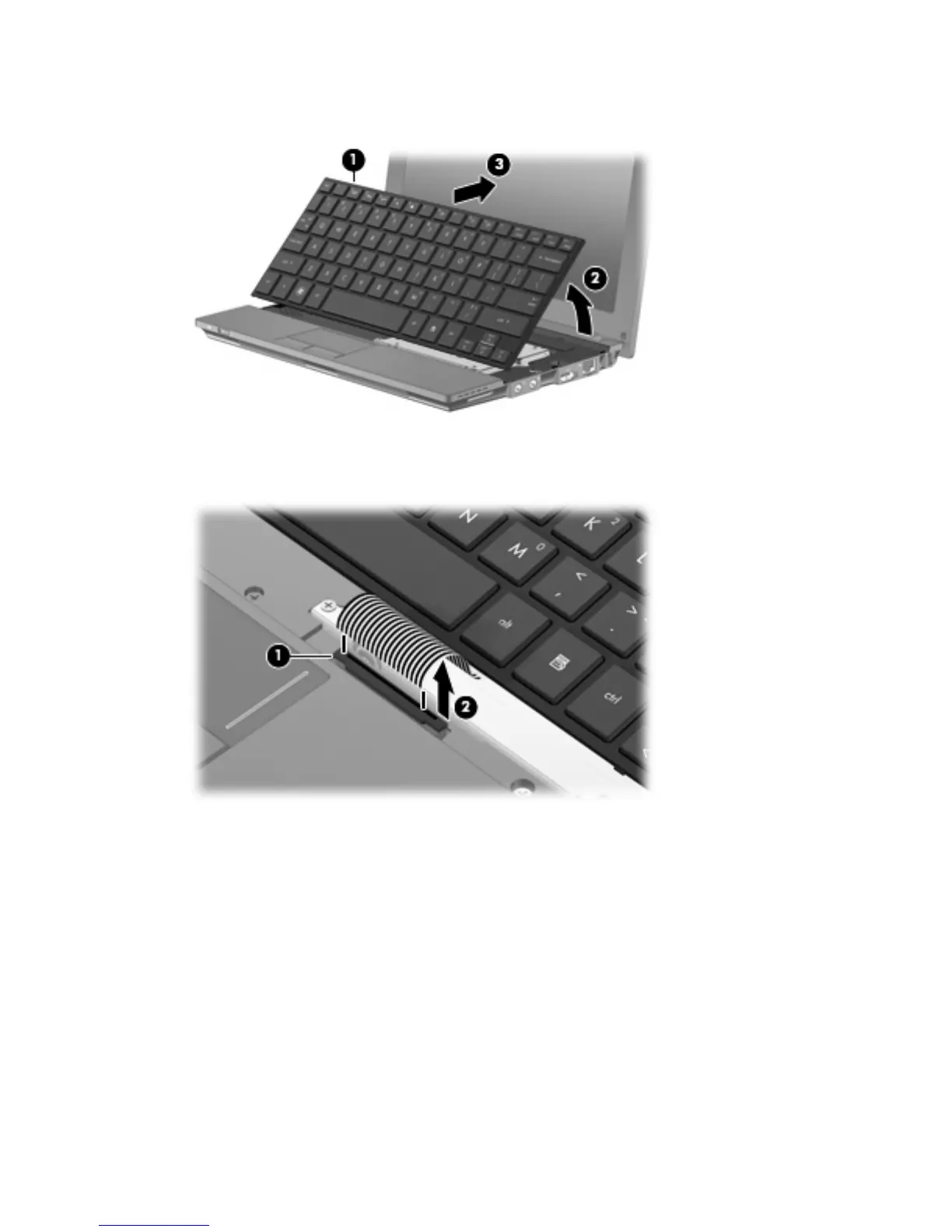

5. Swing the keyboard forward (2), and slide the keyboard back until its top edge rests on the display
assembly (3).
6. Release the zero insertion force (ZIF) connector (1) to which the keyboard cable is attached.
7. Disconnect the cable (2).
8. Remove the keyboard.
Reverse this procedure to install the keyboard.
38 Chapter 4 Removal and replacement procedures
