Speaker
Description Spare part number
Speaker assembly (includes cable) 577967-001
Before removing the speaker assembly, follow these steps:
1. Shut down the device. If you are unsure whether the device is off or in Hibernation, turn the device
on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the device.
3. Disconnect the power from the device by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the device.
4. Remove the battery (see
Battery on page 32).
5. If your device has WWAN capability, remove the SIM (see
SIM on page 33).
6. Remove the memory module (see
Memory module on page 34).
7. Remove the keyboard (see
Keyboard on page 36).
8. Remove the hard drive (see
Hard drive on page 39).
9. Remove the top cover (see
Top cover on page 44).
Remove the speaker assembly:
1. Turn the top cover upside down, with the front toward you.

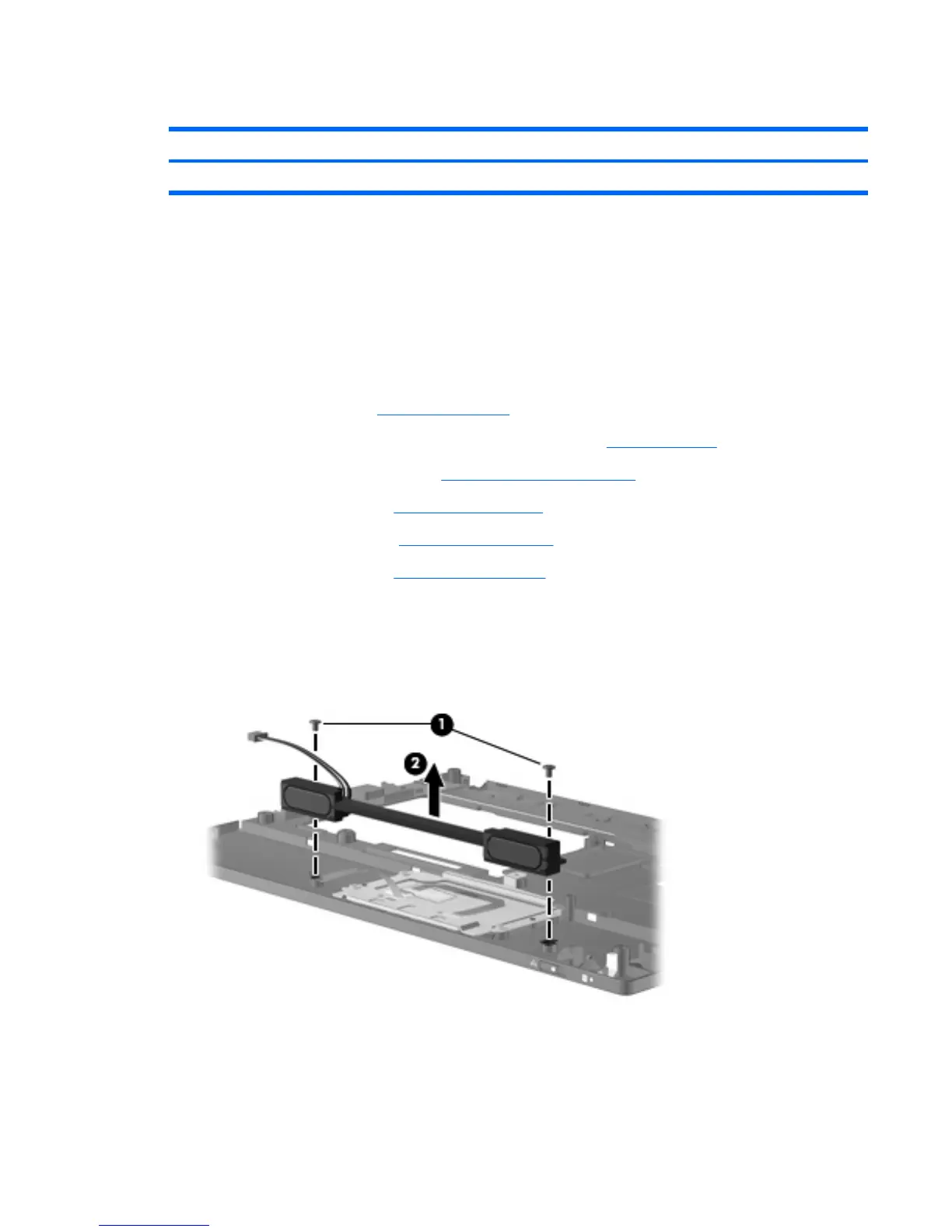

2. Remove the 2 Phillips PMP2.0×3.0 screws (1) that secure the assembly to the top cover, and
remove the speaker assembly (2).
Reverse this procedure to install the speaker assembly.
Component replacement procedures 47
