HP Mini-in-One 24 - Illustrated Parts Catalog; Major Component Identification

8
3 Illustrated parts catalog
To identify the monitor major components, use this illustration and table.
Item
Description
Qty
1
ASSY,MID FRAME,Barzini2
1
2
ASSY,DECO BEZEL,Barzini2
1
3
Panel-BOE
1
4
Panel-LGD
1
5
ASSY,VESA MOUNT,Barzini2
1
6
ASSY,MAIN CHASSIS,Barzini2
1
7
Scalar Board
1
8
GNRC, Speaker 50X22 40HM/2W ,Barzini2
1
9
SUPPORT PCB BKT-L,SECC,T=0.5mm
1
10
SUPPORT PCB BKT-R,SECC,T=0.5mm
1
11
ASSY,IO SHIELDING,Barzini2
1
12
ASSY,BUCKET,Barzini2
1
13
VENT COVER,ABS,MT11010,Barzini2
2
14
VESA COVER,ABS,MT11010,Barzini2
1
15
GNRC,FHD,WEBCAM 2Dmic,Barzini2 MiO
1
16
ASSY, SIDE USB PCBA
1
17
ASSY, FUNCTION PCBA
1

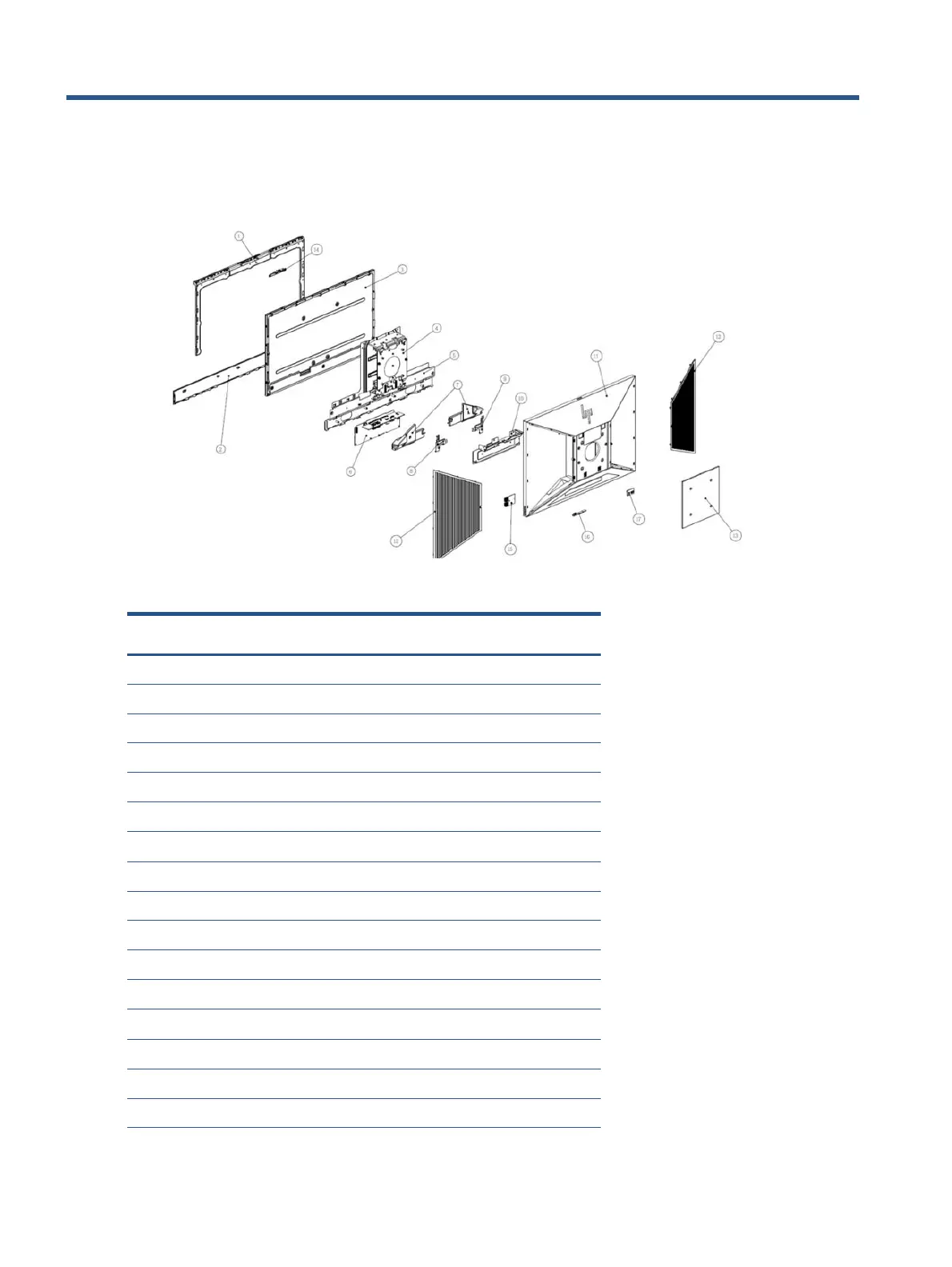

Illustration showing the major components of the monitor
