Removal and Replacement Procedures
6. Press the PCI-X slot release lever (1) and swing the slot release lever upward (2).
7. Lift the expansion board out of the server (3).

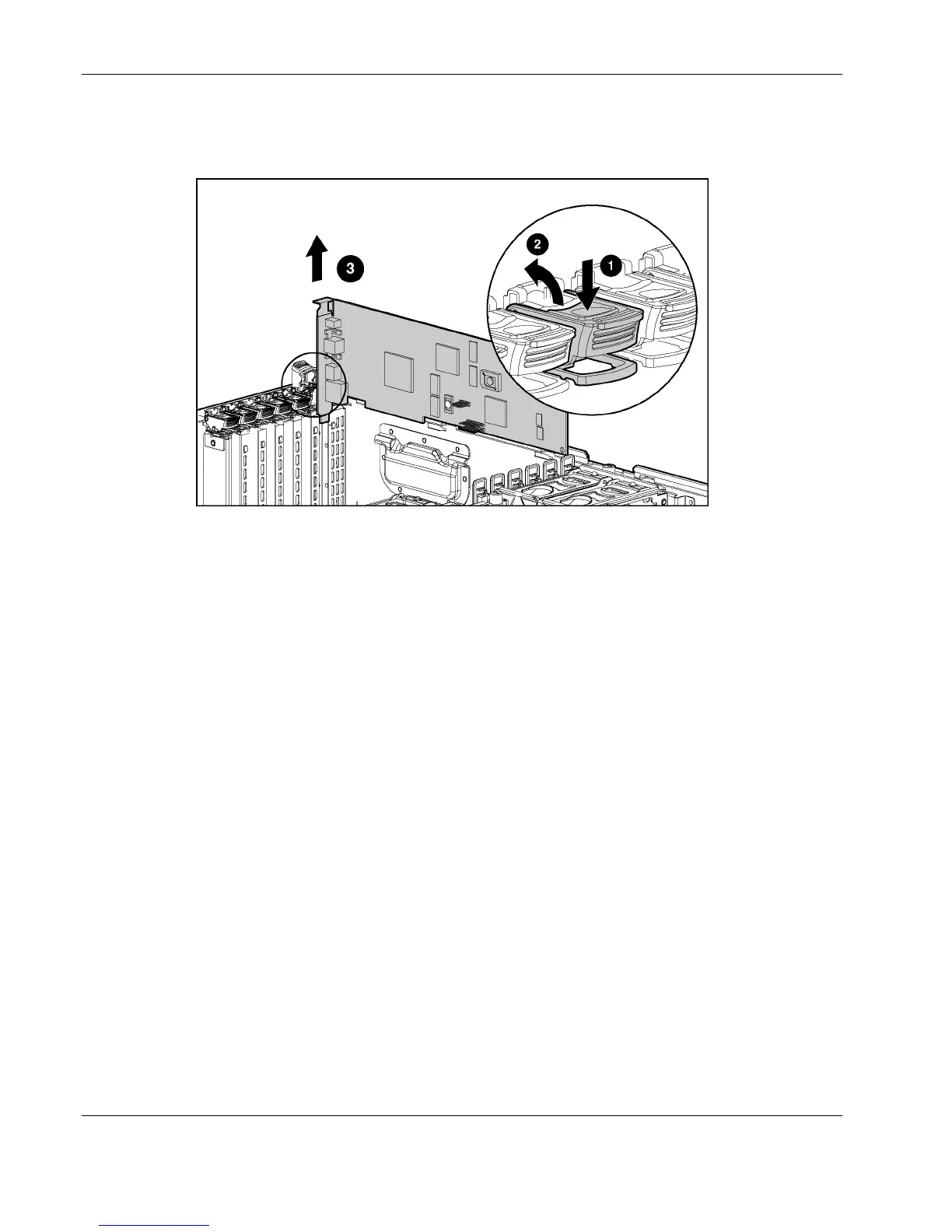

Figure 2-29: Removing a PCI-X expansion board
IMPORTANT: Make note of board locations. Be sure to install replacements in the same slots.
To replace a PCI-X expansion board:
1. Position the expansion board above the expansion slot and slide the board into the slot,
using the PCI-X guide to align the board with the slot.
2. Press down on the expansion board to seat it in the slot.
3. Press the PCI-X slot release lever down until it clicks into place to lock the slot.
4. If the PCI-X guide clip does not snap forward to secure the board, pull it into a locked
position manually.
