LED Indicators and Switches
Rear Unit Identification LED Switch
The server includes unit identification (UID) LEDs with switches on both the front and rear
panels. The UIDs indicate activity status and can be toggled on and off by the front or rear
hardware push button or by the Insight Manager 7 application.
The rear UID identifies the location of an individual server in a rack of servers. It also
contains an integrated button to activate or deactivate the LED.

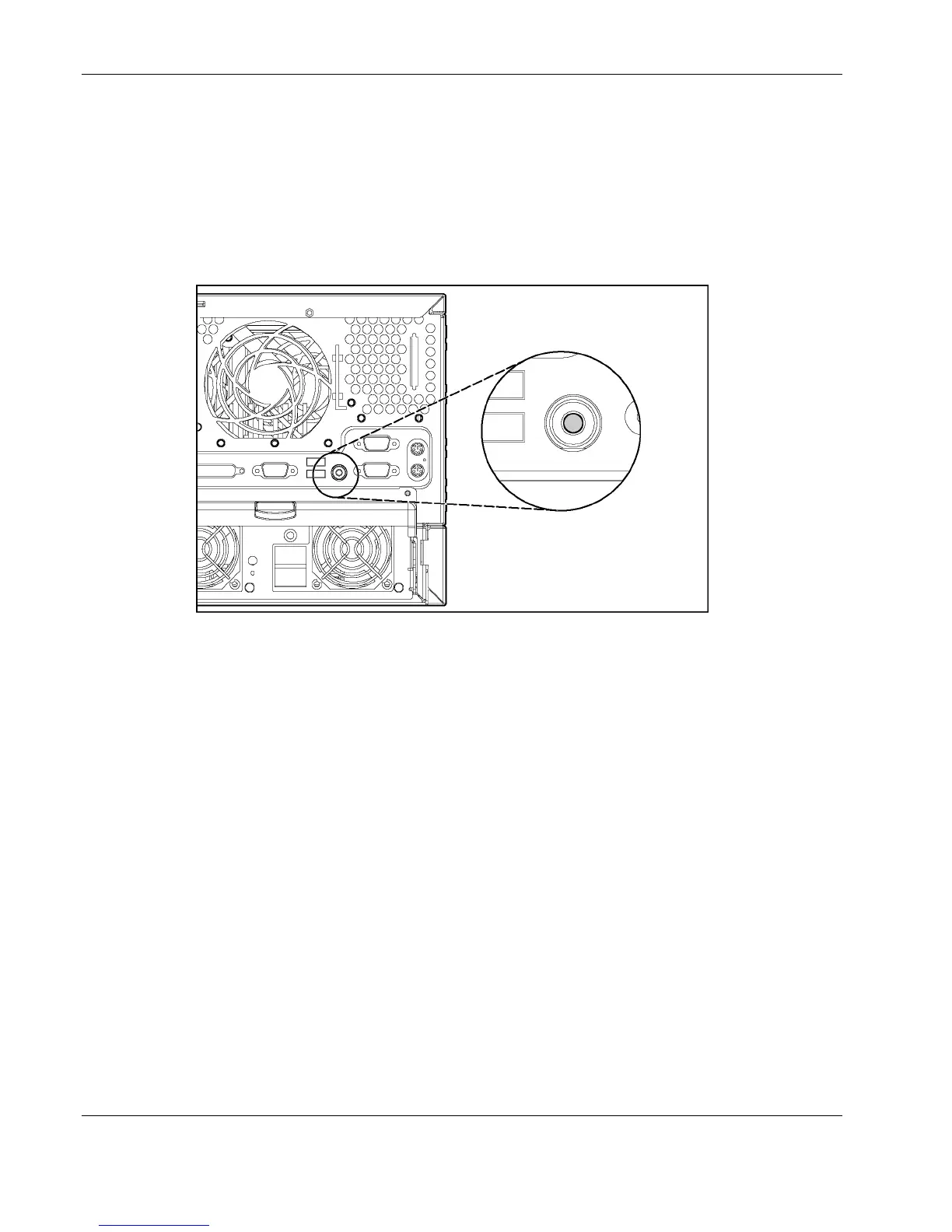

Figure 4-4: Rear UID and switch (rack model)
The rear UID indicates the following states:
•
•
•
Blue on = The switch is activated.
Blue flashing = The system is being monitored remotely.
Off = The switch is deactivated.
