HP MultiSeat ms6000 User Manual

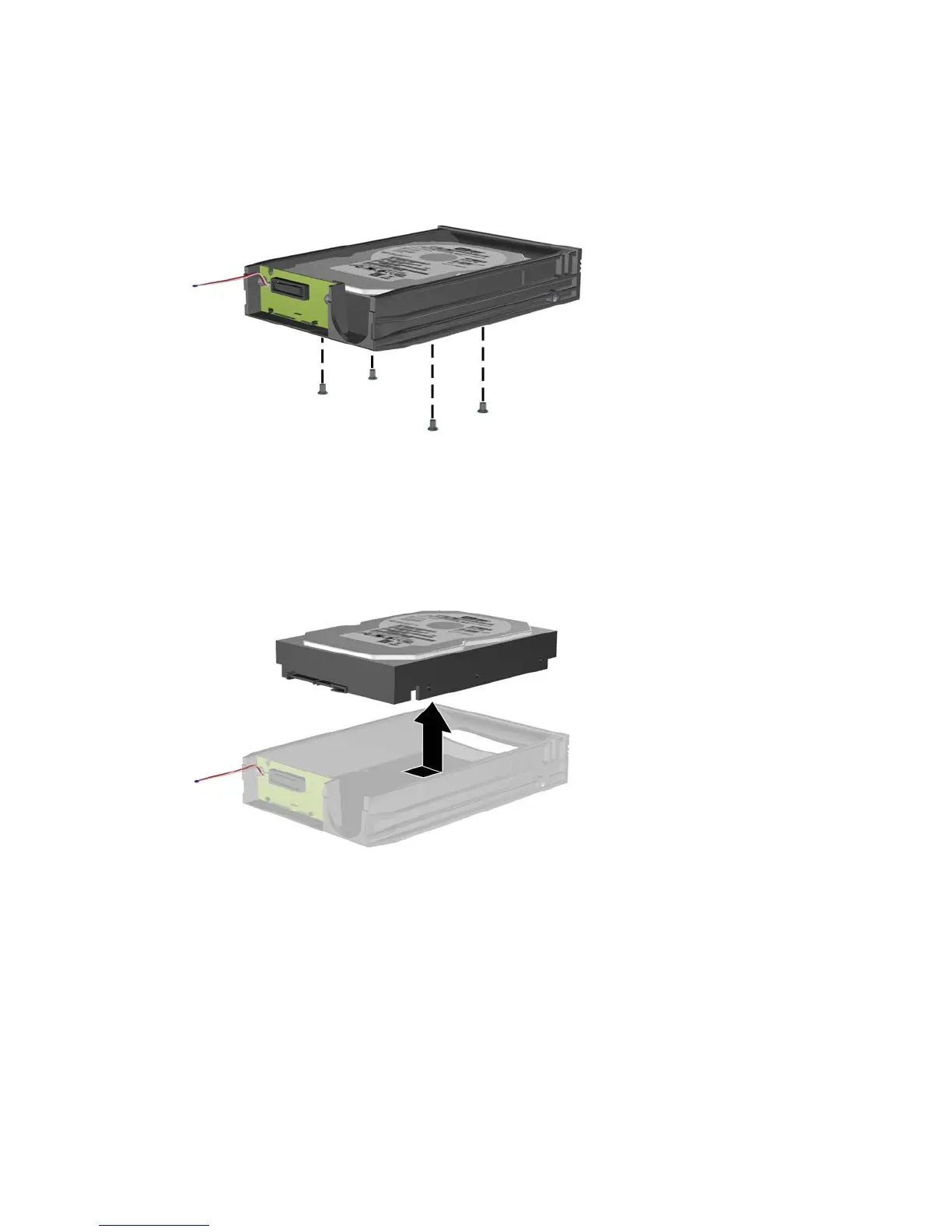

4. Remove the four screws from the bottom of the hard drive carrier.
Figure 5-39 Removing the Security Screws
5. Slide the hard drive back to disconnect it from the carrier then lift it up and out of the carrier.
Figure 5-40 Removing the Hard Drive
64 Chapter 5 Removal and Replacement Procedures

HP MultiSeat ms6000 Specifications

General

Brand	HP
Model	MultiSeat ms6000
Category	Server
Language	English
