Back view
1 Rear universal serial bus (USB) port
2 Power input
3 1-LINE (fax)
4 2-EXT (phone)
Device control panel buttons and lights

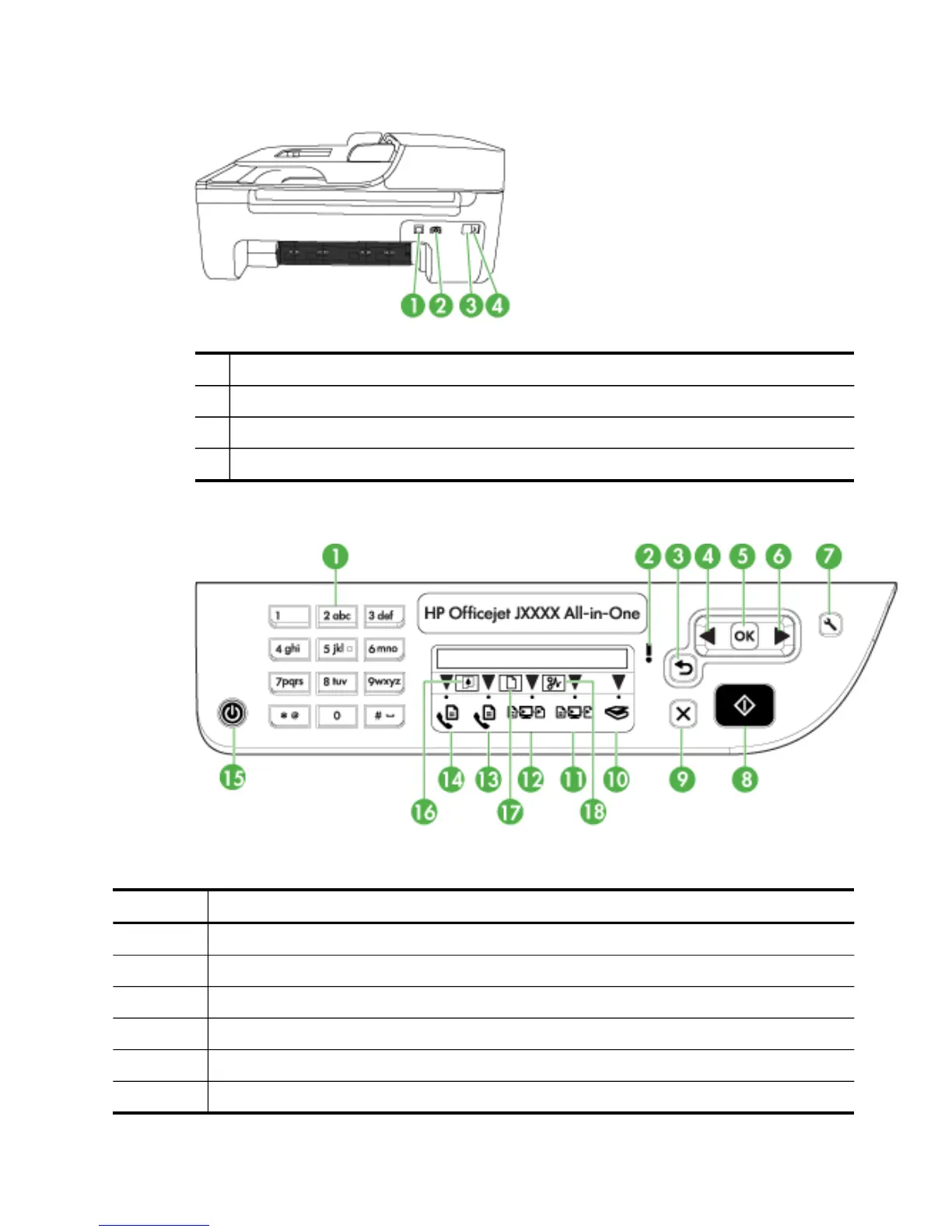

The following diagram and related table provide a quick reference to the device control
panel features.
Label Name and Description
1
Keypad: Enters values.
2 Attention light: Indicates an error condition.
3
Back button: Reverts back to its previous setting or upper level menu.
4
Left arrow button: Navigates forward through settings in the menus.
5
OK button: Selects the current menu or setting.
6
Right arrow button: Navigates in reverse through settings in the menus.
Understand the device parts 11
