Shared voice/fax with computer DSL/ADSL modem
Use these instructions if your computer has a DSL/ADSL modem

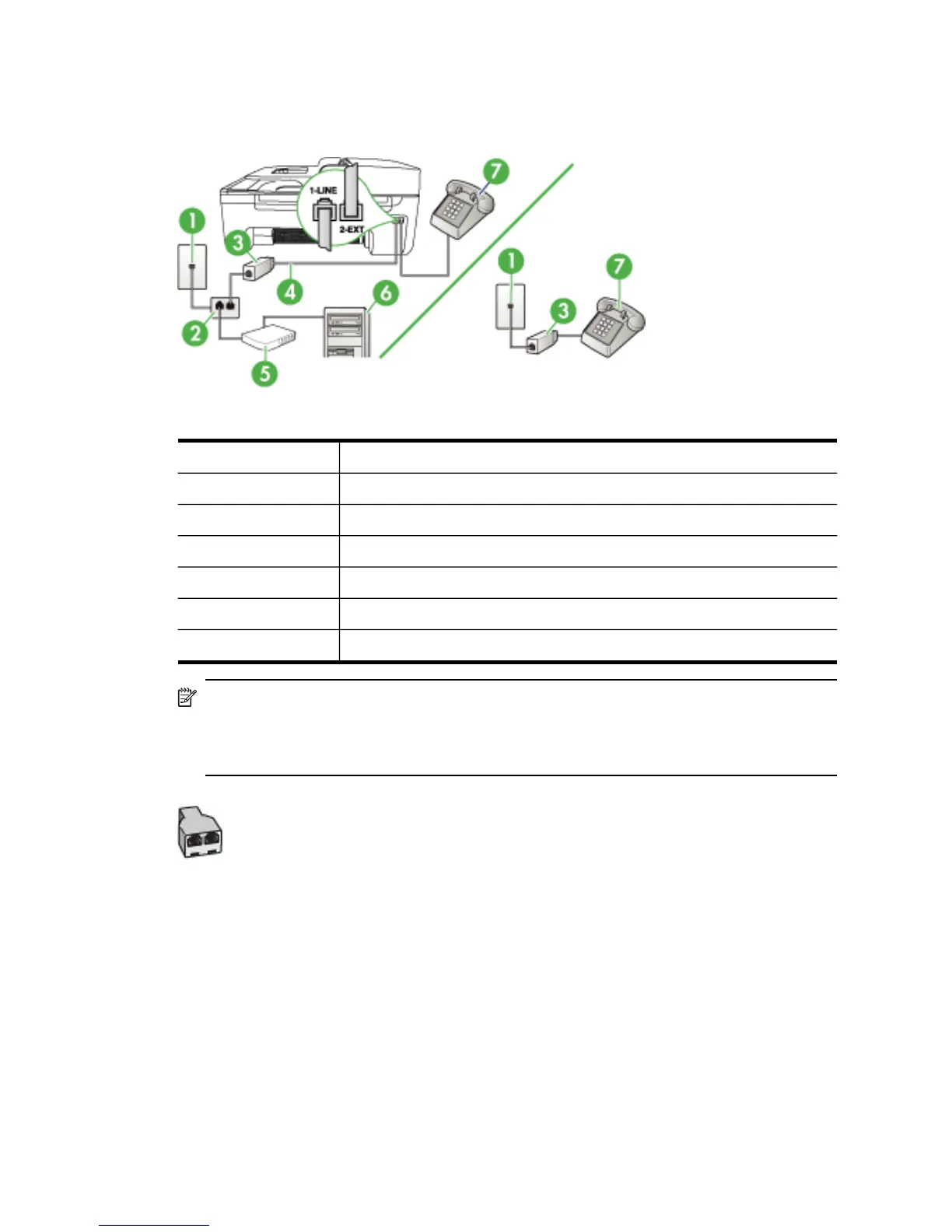

1 Telephone wall jack
2 Parallel splitter
3 DSL/ADSL filter
4 Phone cord supplied with the device
5 DSL/ADSL modem
6 Computer
7 Telephone
NOTE: You will need to purchase a parallel splitter. A parallel splitter has one
RJ-11 port on the front and two RJ-11 ports on the back. Do not use a 2–line
phone splitter, a serial splitter, or a parallel splitter which has two RJ-11 ports on
the front and a plug on the back.
