Table 5-2 Solid-state drive descriptions and part numbers
Description Spare part number
1 TB, PCIe, TLC L85348-001
512 GB, PCIe, TLC L85360-001
512 GB solid-state drive + 32 GB Optane memory module L85366-001
256 GB, PCIe, TLC L85350-001
Solid-state drive thermal pad L98956-001
Before removing the solid-state drive, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 31).
2. Remove the bottom cover (Bottom cover on page 31).
3. Disconnect the battery cable from the system board (Battery on page 37).
Remove the solid-state drive:
NOTE: Use the same procedure to remove both solid-state drives.

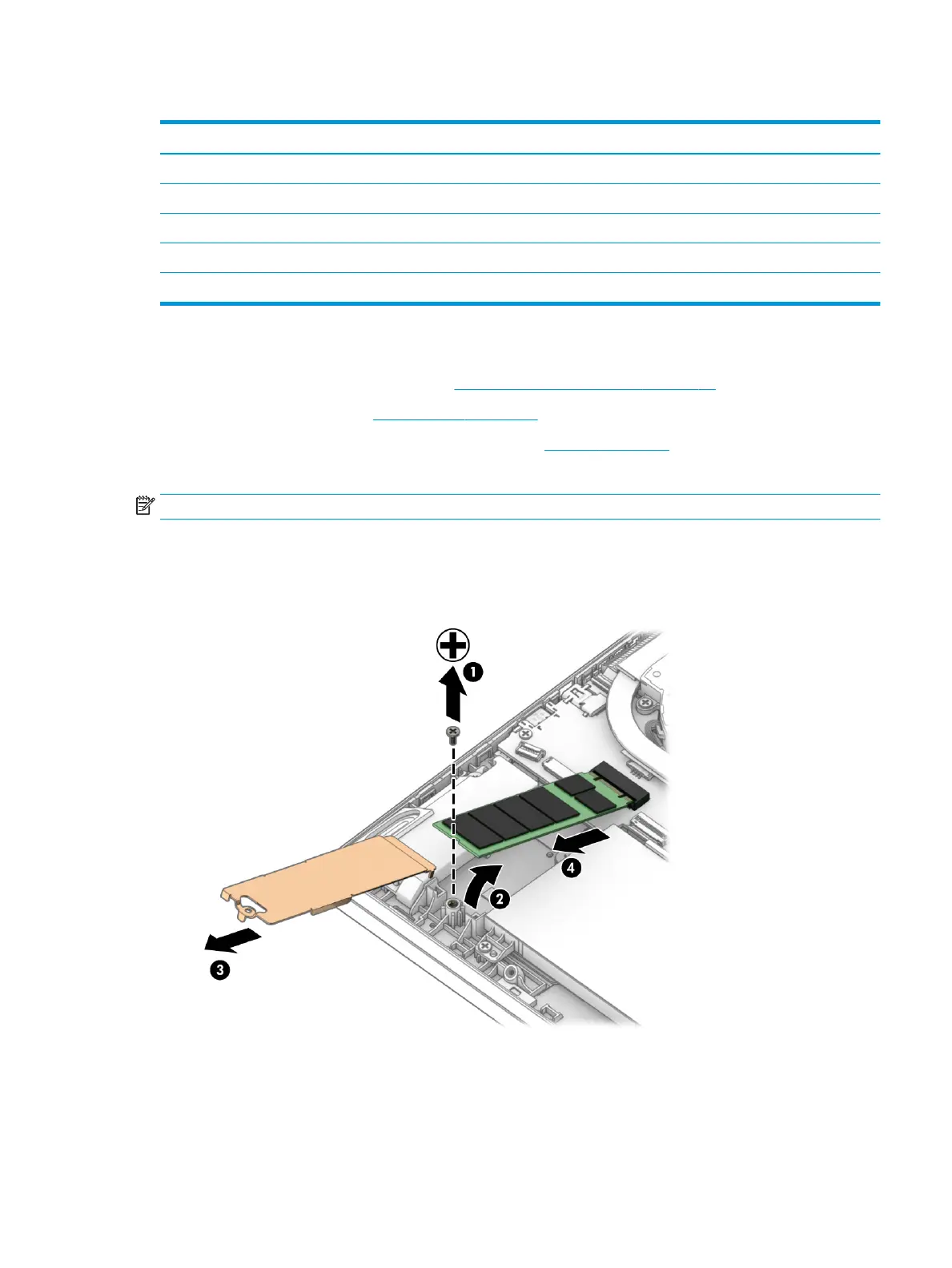

1. Remove the Phillips M2.0 × 5.0 screw that secures the drive to the computer (1).
2. Lift the drive to a 45° angle (2), and then remove the cover from the drive (3).
3. Pull the drive away to remove it from the socket (4).
To install the solid-state drive, reverse the removal procedures.
When installing a new solid-state drive, be sure to install the thermal pad to the inside of the cover.
Component replacement procedures 33
