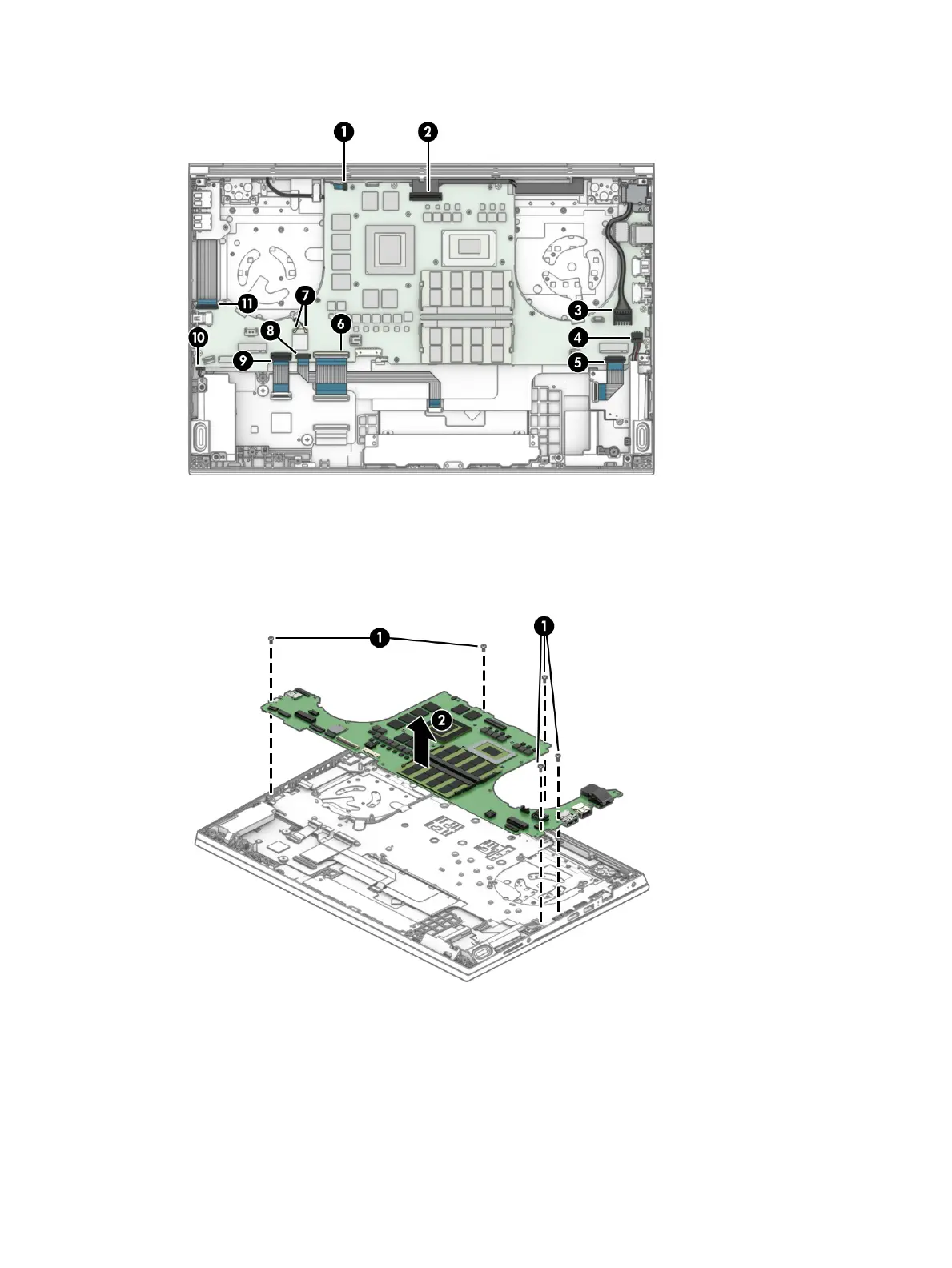

2. Remove ve Phillips M2.0 × 5.0 screws (1) that secure the system board to the computer.
3. Remove the system board (2).
Reverse this procedure to install the system board.
Infrared (IR) board
To remove the IR board, use this procedure and illustration.
50 Chapter 6 Removal and replacement procedures for authorized service provider parts
