Table 6-12 Touchpad description and part number
Description Spare part number
Touchpad L98745-001
Touchpad cable L98730-001
Before removing the touchpad, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 31).
2. Remove the bottom cover (Bottom cover on page 31).
3. Remove the solid-state drives (Solid-state drive on page 32).
4. Remove the battery (see Battery on page 37).

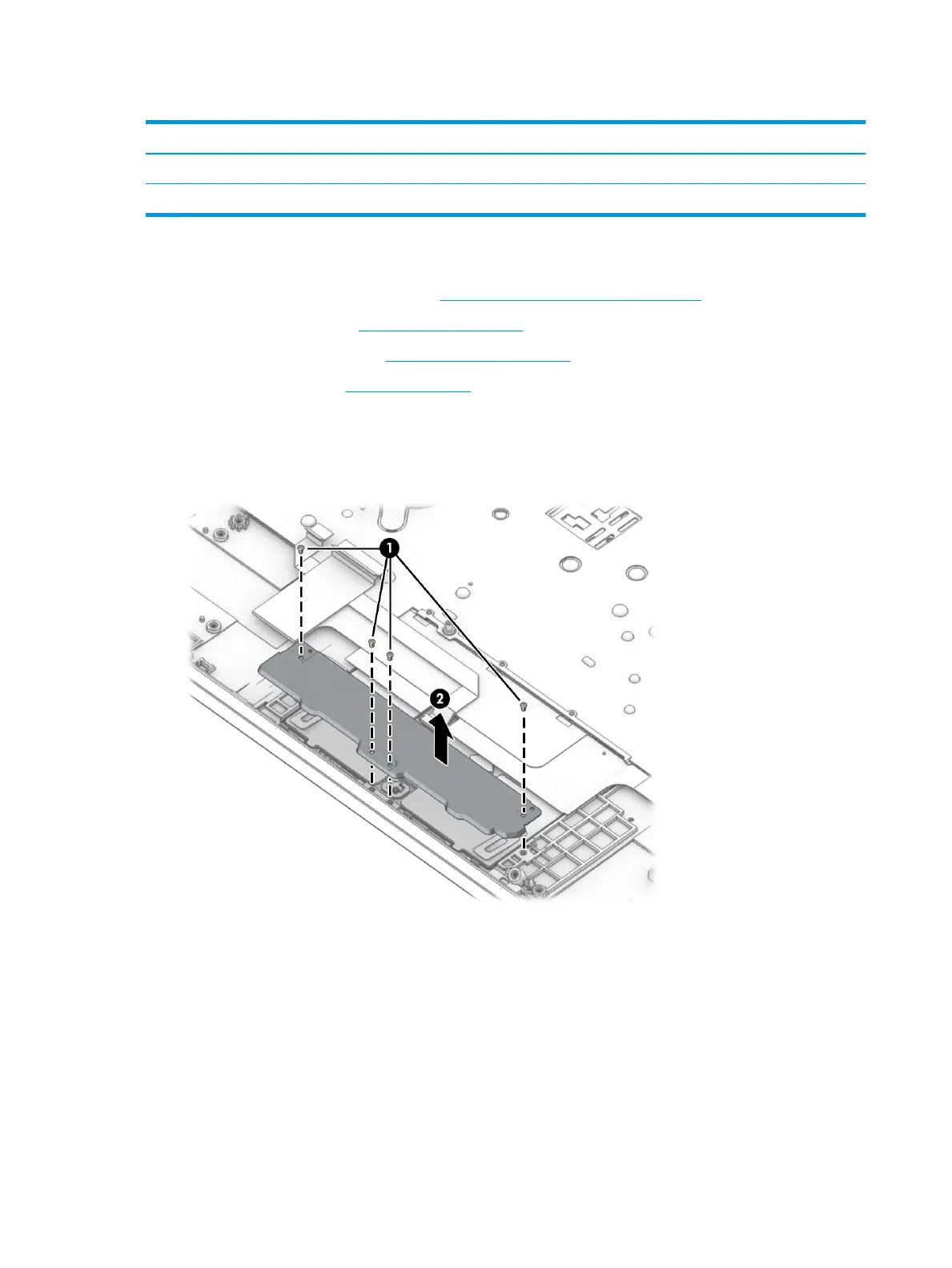

Remove the touchpad:
1. Remove the four Phillips M1.6 × 2.3 screws (1) that secure the touchpad bracket to the computer.
2. Remove the bracket from the computer (2).
3. Disconnect the cable from the ZIF connector on the touchpad (1).
4. Lift the protective tape from the top of the touchpad (2) and the tape from over the right screw (3).
5. Remove the three Phillips M2.0 × 2.0 screws (4) that secure the touchpad to the computer.
52 Chapter 6 Removal and replacement procedures for authorized service provider parts
