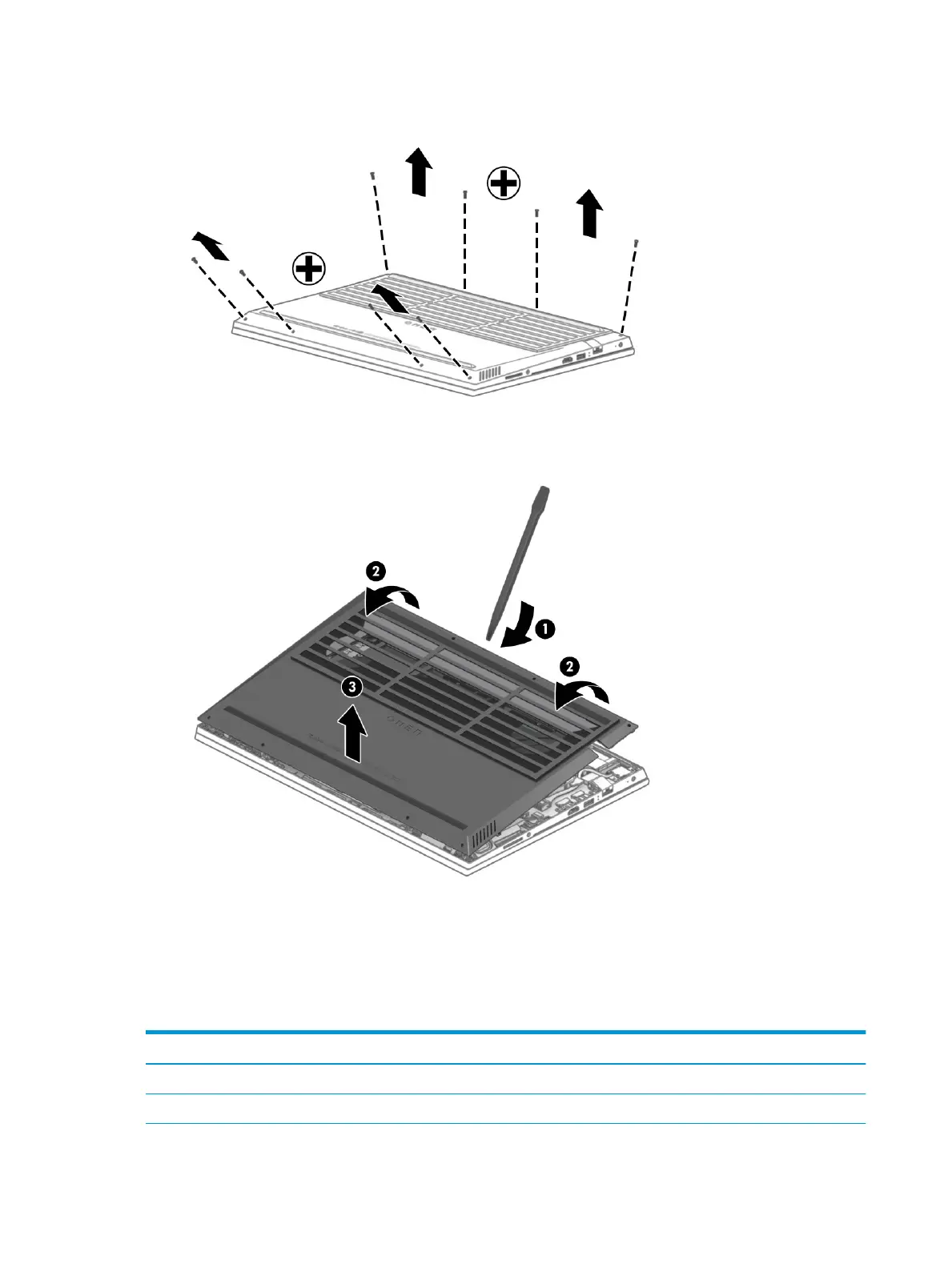

1. Remove the eight Phillips M2.0 × 6.0 screws that secure the bottom cover to the computer..
2. Use a tool (1) to release the bottom cover near the display (2), and then remove the bottom cover from
the computer (3).
To replace the bottom cover, reverse the removal procedures.
Solid-state drive
To remove the solid-state drive, use this procedure and illustration.
Table
5-2 Solid-state drive descriptions and part numbers
Description Spare part number
1 TB, PCIe, TLC L85348-001
512 GB, PCIe, TLC L85360-001
32 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts
