1. Prepare the computer for disassembly (Preparation for disassembly on page 31).
2. Remove the bottom cover (Bottom cover on page 31).
3. Remove the solid-state drive to the left of the battery (Solid-state drive on page 32).
WARNING! To reduce potential safety issues, use only the user-replaceable battery provided with the
computer, a replacement battery provided by HP, or a compatible battery purchased from HP.
IMPORTANT: Removing a user-replaceable battery that is the sole power source for the computer can cause
loss of information. To prevent loss of information, save your work or shut down the computer through
Windows before you remove the battery.

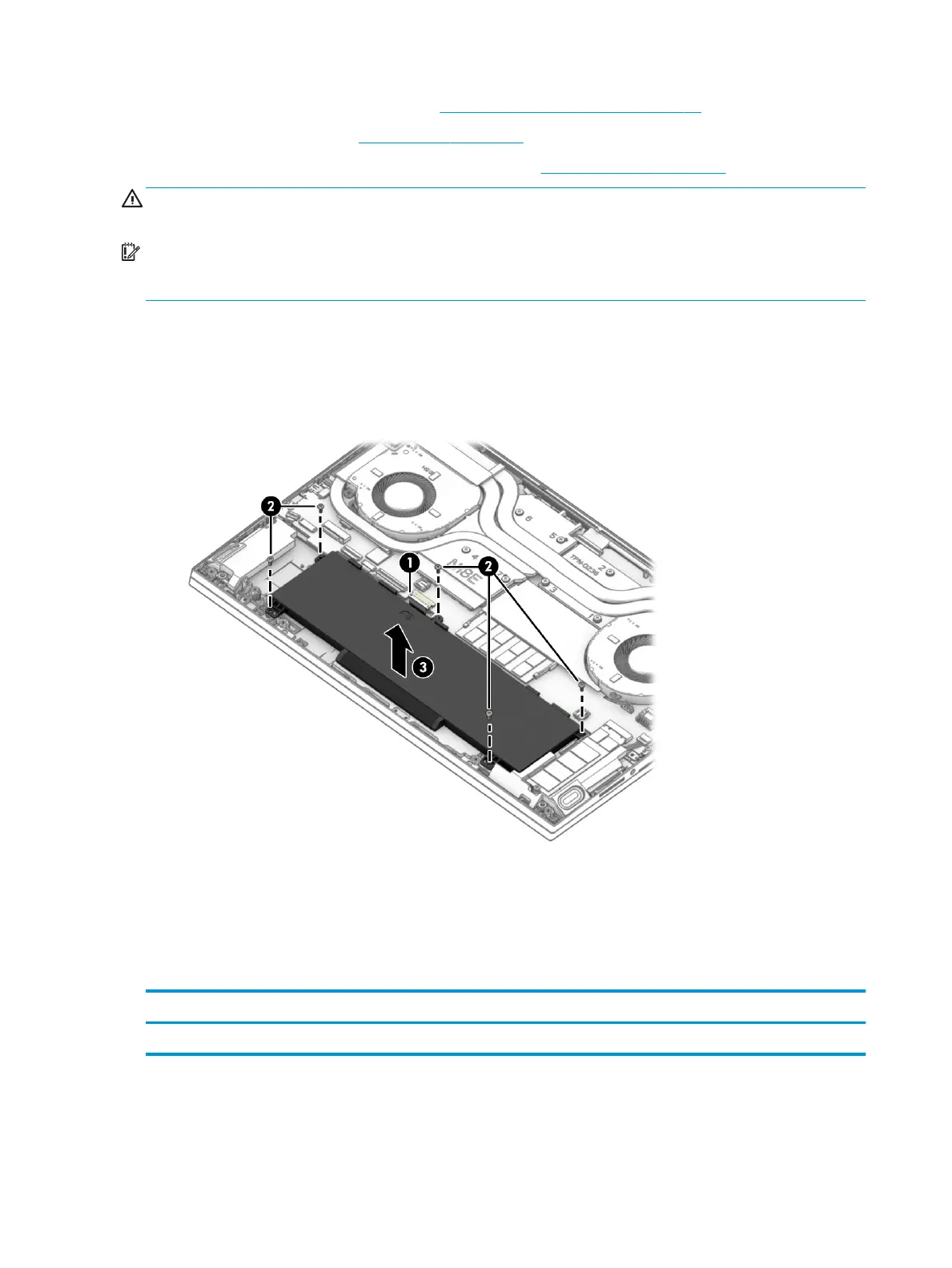

Remove the battery:
1. Doisconnect the battery cable from the system board (1).
2. Remove the ve Phillips M2.0 × 5.0 screw (2) that secure the battery to the computer.
3. Remove the battery from the computer (3).
To insert the battery, reverse the removal procedures.
Power connector cable
To remove the power connector cable, use this procedure and illustration.
Table
6-2 Power connector cable description and part number
Description Spare part number
Power connector cable L98734-001
Before removing the power connector cable, follow these steps:
38 Chapter 6 Removal and replacement procedures for authorized service provider parts
