Table 3-2 Display component descriptions and part numbers (continued)
Item Component Spare part number
(6) Display brackets not available as a
spare part
(7) Hinge covers (left and right, includes bezel adhesive and display back cover adhesive) M00634-001
(8) Hinges (left and right, includes bezel adhesive and display back cover adhesive) L98740-001
(9) Display back cover (includes antennas and bezel adhesive)
NOTE: Display back cover adhesive is available as spare part number L98958-001.
For use in models with a 2.6 mm display panel M00629-001
For use in models with a 3.2 mm display panel M00630-001
Cables

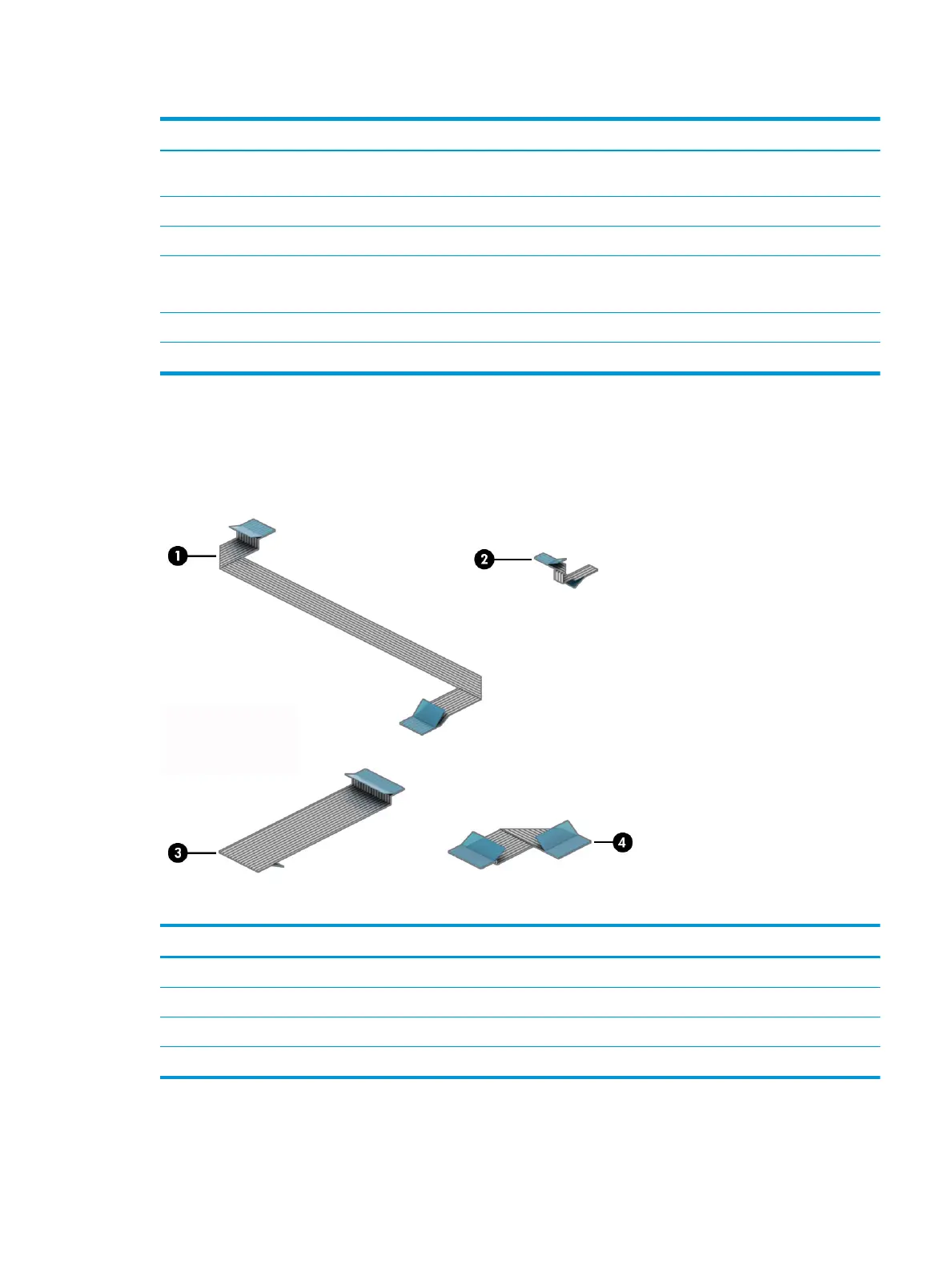

To identify the cables, use this illustration and table.
Table 3-3 Cable descriptions and part numbers
Item Component Spare part number
(1) Touchpad cable L98730-001
(2) IR board cable L98726-001
(3) USB board cable L98725-001
(4) Card reader/audio board cable L98727-001
Cables 21
