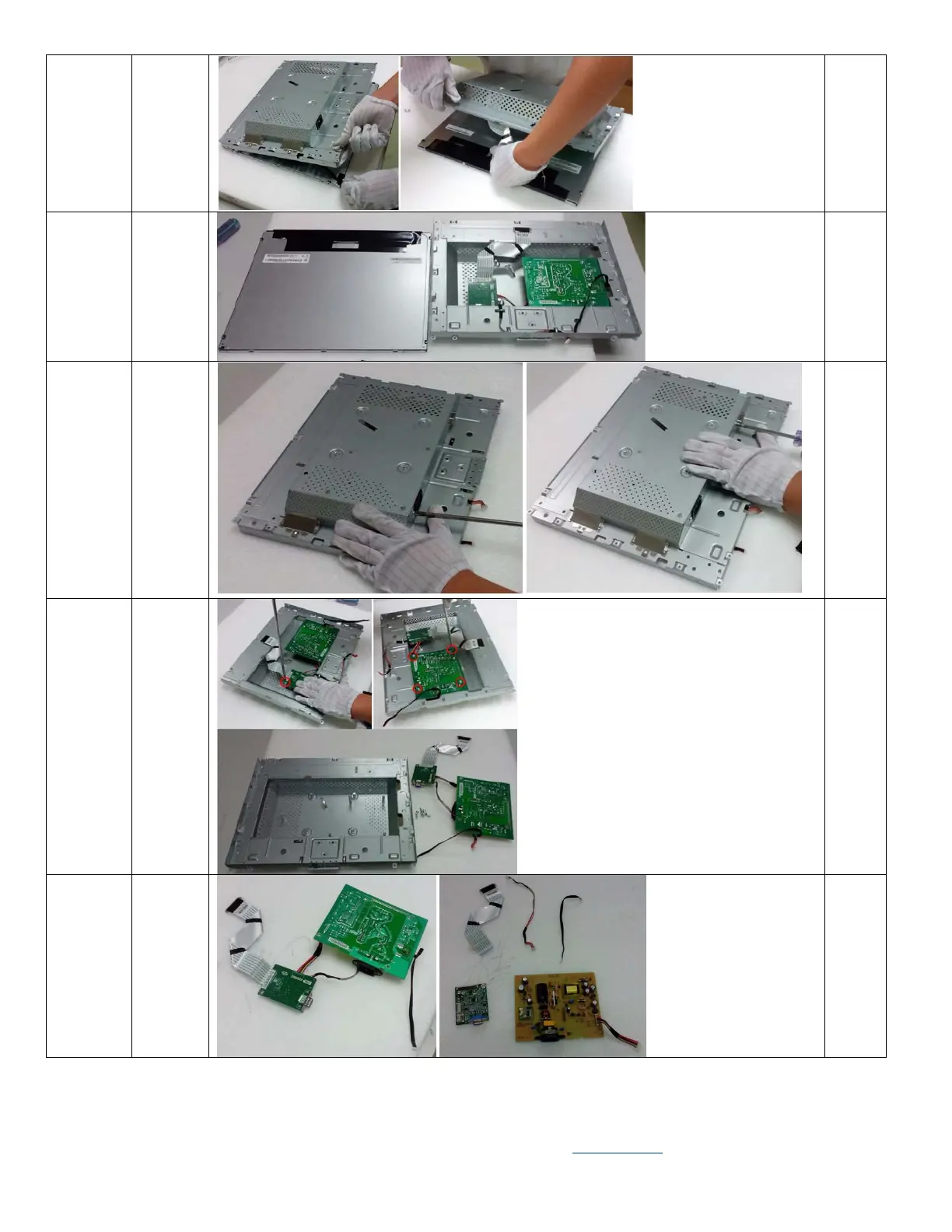

Take out
the LED
light and
the LVDS
connector
from Panel
N/A
Separate
chassis
assembly
and panel
N/A
Unlock the
2 screws
which fix
power
socket to
the chassis
Unlock the
2 screws
which fix
the IF
board to
the chassis
#1
Crossing
Screw
Driver
#2
Crossing
Screw
Driver
Unlock the
5 screws
which fix
the IF &
Power
PCBA
#1
Crossing
Screw
Driver
Take out
the LED
lightthe
keypad and
the LVDS
connector
from
PCBA
N/A
EL-MF877-00 Page 4
Template Revision B
PSG instructions for this template are available at EL-MF877-01
