4 537489-001 — Removing and Replacing an Add-In Card

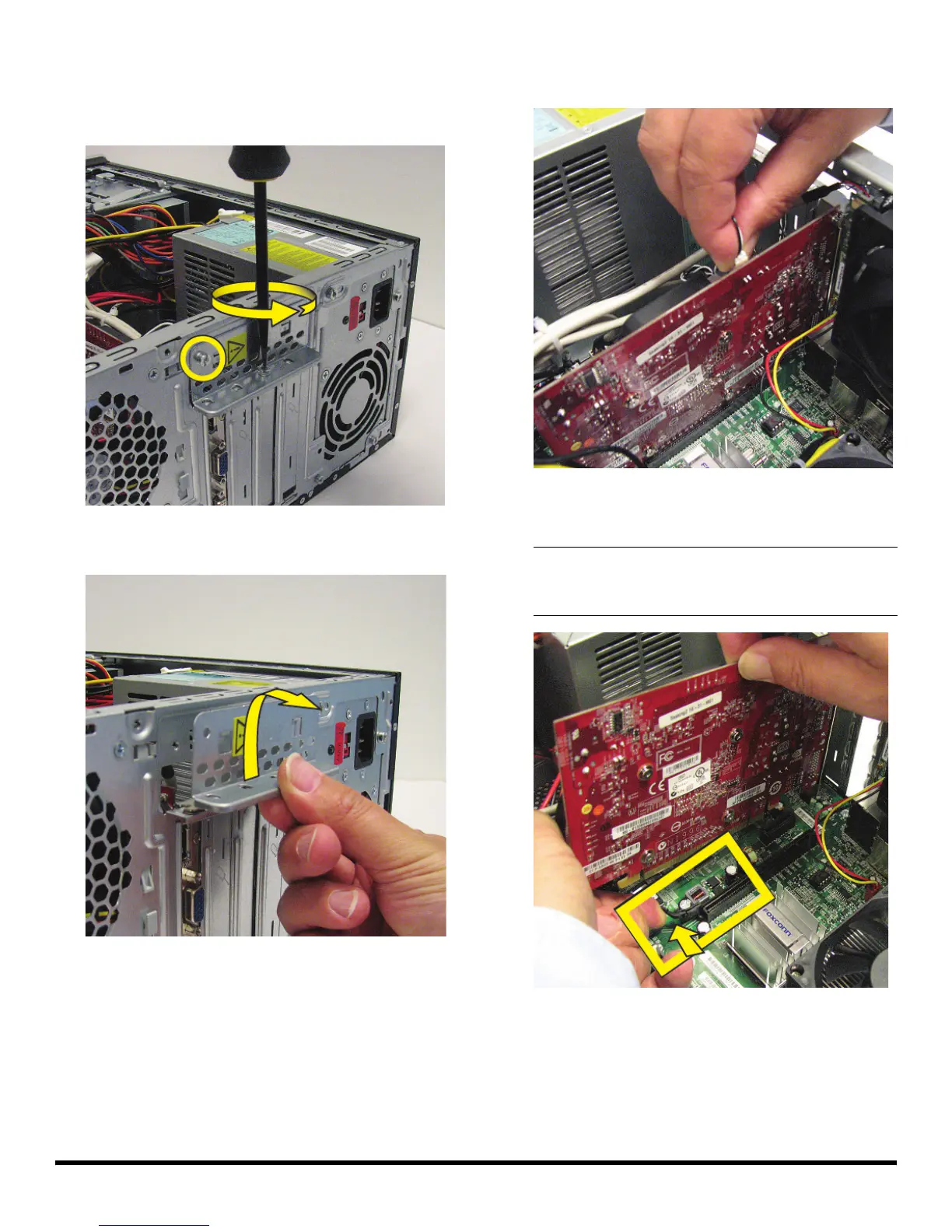

9 On the back of the computer, remove the screw from
the bracket cover for the add-in cards. If it is present,
also remove the additional screw that secures a large
graphics card.
10 Lift off the bracket cover.
11 If present, disconnect any cables connected to
the card.
12 Look at the add-in card socket for a release lever,
which is present on some sockets.
IMPORTANT: Some sockets have a release lever that
must be disengaged to remove the card from the
socket. The release lever style may vary.
