10 Getting Started (features vary by model)

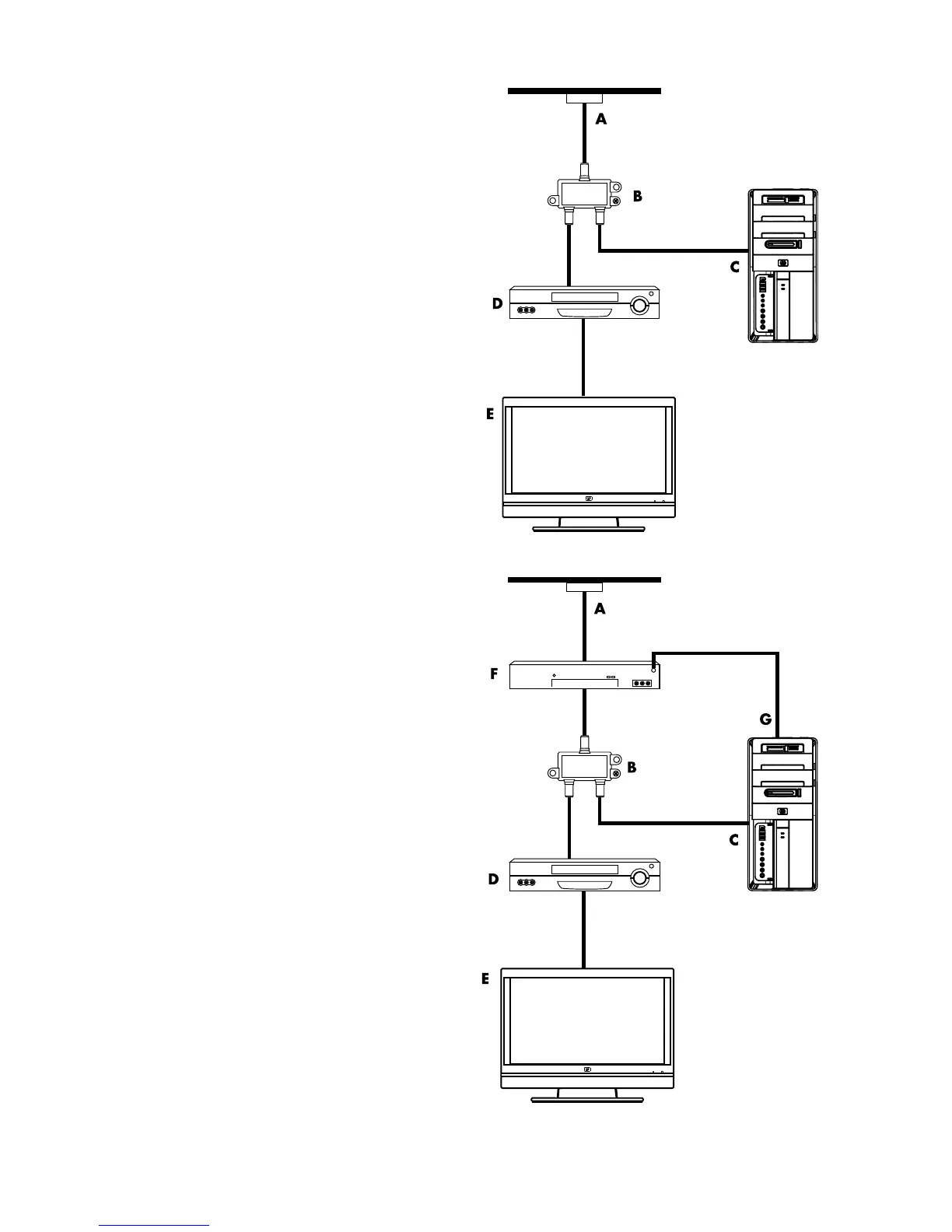

Connecting the TV signal source without a set-top box
To connect the computer into an existing setup
for the TV signal source without a set-top box,
insert (add) a splitter (B) to route the coaxial TV
signal cable from the wall outlet (A) to the
computer connector (C).
Callouts
A TV signal cable (coaxial) wall outlet (from
antenna or cable)
B Splitter
C Computer coaxial TV In connector
D Video recorder
E TV
Connecting the TV signal source with a set-top box
To connect the computer into an existing setup
for the TV signal source with a set-top box
(cable or satellite), insert (add) a splitter (B) to
route the coaxial TV signal cable from the
set-top box (F) to the computer connector (C).
Connect the remote control cable/IR blaster
(select models only) (G) to the IR OUT
connector on the computer, and then position
the blaster on the set-top box. This enables the
computer to change the channel on the set-top
box. See “Using an infrared receiver (IR)
blaster” on page 12 for IR blaster placement
details.
Callouts
A TV signal cable (coaxial) wall outlet
(from antenna or cable)
B Splitter
C Computer coaxial TV In connector
D Video recorder
E TV
F Set-top box/satellite box
G Remote control IR blaster cable (select
models only)
