HP P6300 Enterprise Virtual Array User Manual

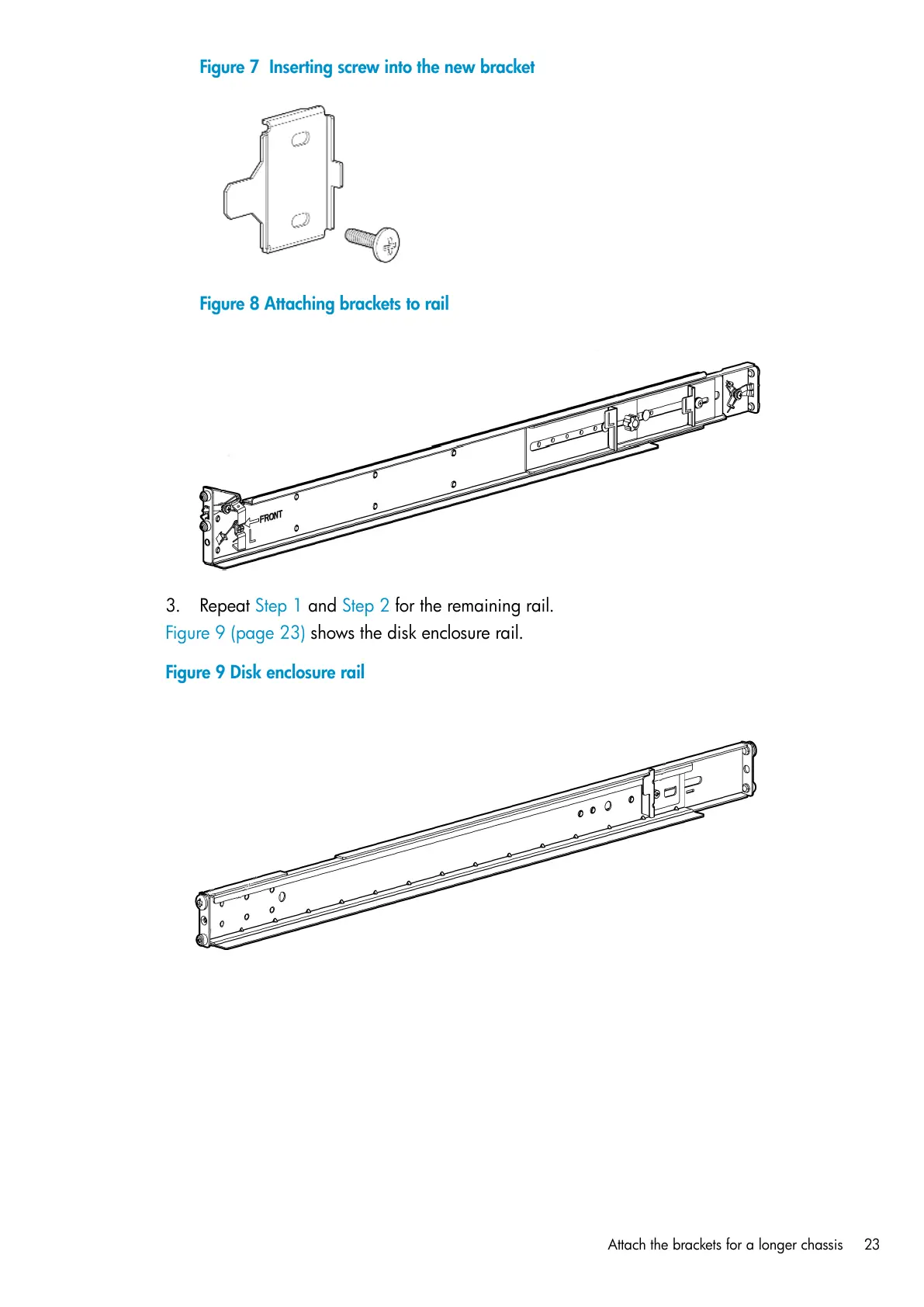

Figure 7 Inserting screw into the new bracket
Figure 8 Attaching brackets to rail
3. Repeat Step 1 and Step 2 for the remaining rail.
Figure 9 (page 23) shows the disk enclosure rail.
Figure 9 Disk enclosure rail
Attach the brackets for a longer chassis 23
