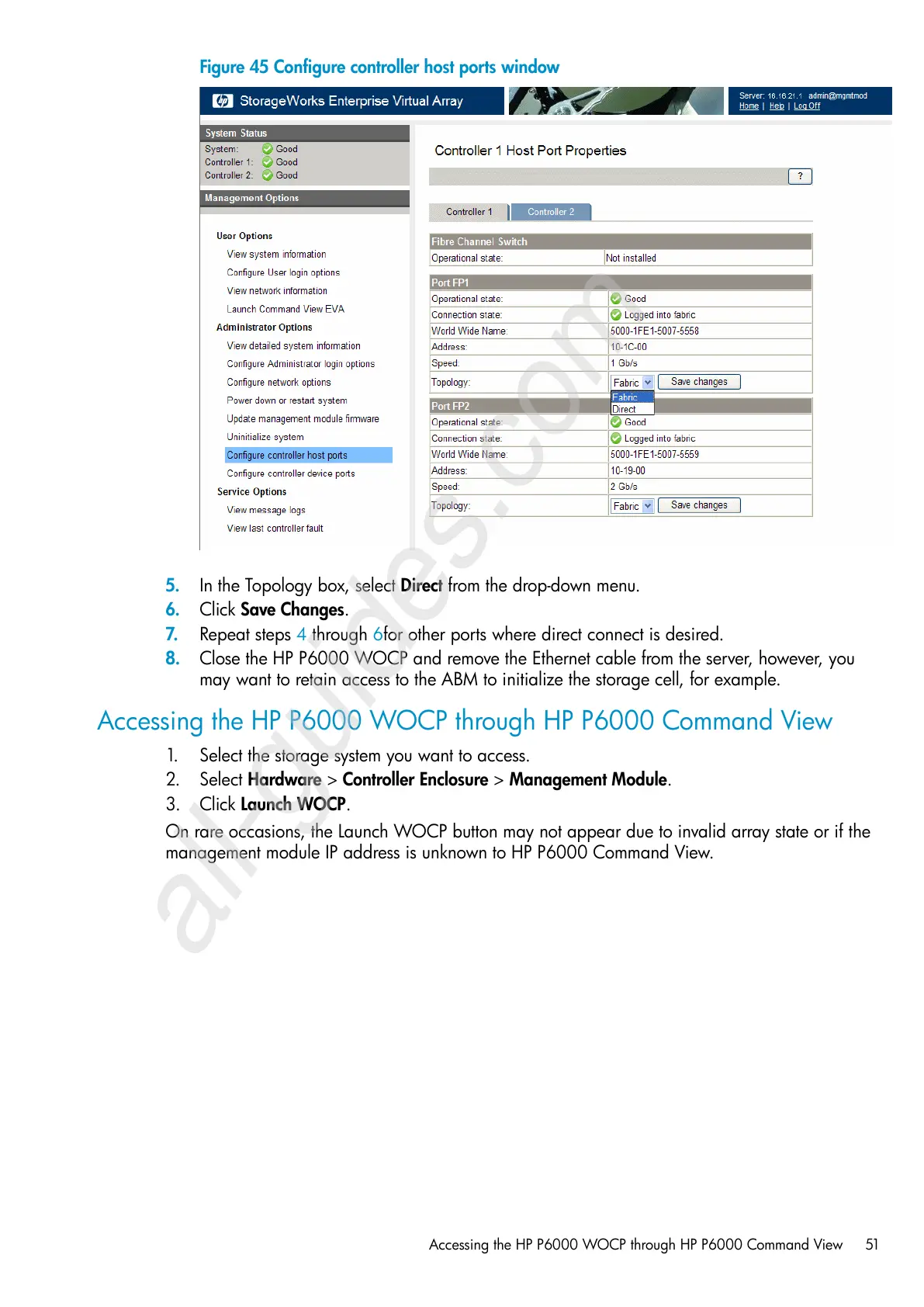

Figure 45 Configure controller host ports window
5. In the Topology box, select Direct from the drop-down menu.
6. Click Save Changes.
7. Repeat steps 4 through 6for other ports where direct connect is desired.
8. Close the HP P6000 WOCP and remove the Ethernet cable from the server, however, you
may want to retain access to the ABM to initialize the storage cell, for example.
Accessing the HP P6000 WOCP through HP P6000 Command View
1. Select the storage system you want to access.
2. Select Hardware > Controller Enclosure > Management Module.
3. Click Launch WOCP.
On rare occasions, the Launch WOCP button may not appear due to invalid array state or if the
management module IP address is unknown to HP P6000 Command View.
Accessing the HP P6000 WOCP through HP P6000 Command View 51
