HP PageWide XL 8000

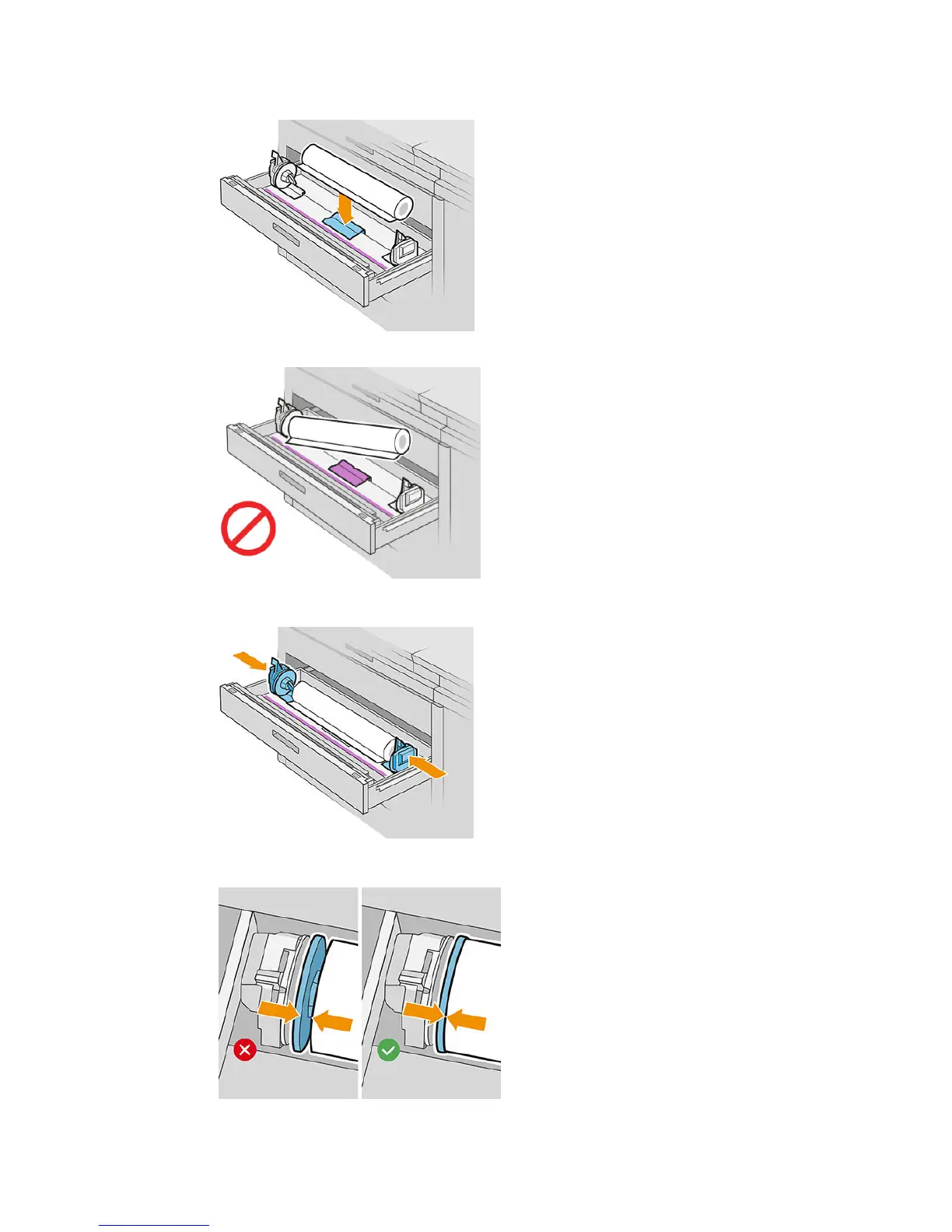

5. Place the roll into the drawer between the hubs, with the paper edge as shown.
Do not load the roll at an angle, like this:
6. Slide the hubs back towards the center so that they engage with the roll.
7. Ensure that the hubs are tted tightly to the roll on both sides.
ENWW Load paper 31
