26 Start Here

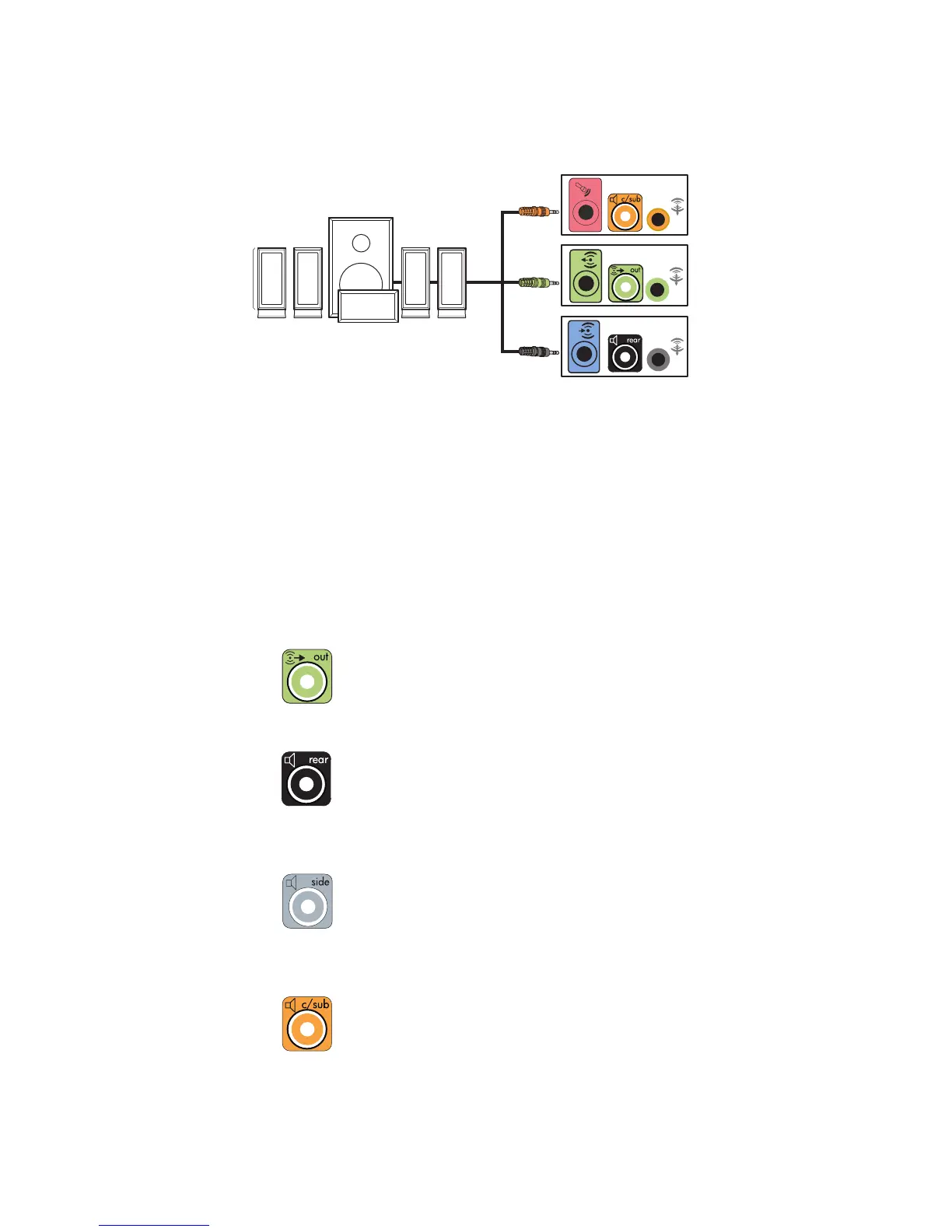

The following diagram shows a typical 5.1 audio installation:
Connecting 7.1 (Seven Speakers and a Subwoofer)
Audio Speakers
(Select models only)
To connect two front speakers, two side speakers, two rear speakers, a center speaker,
and a subwoofer for eight-channel (7.1 speaker) output:
1 Turn off the computer.
2 Connect the front speaker cable to the lime green Audio Line Out connector on the
back of your computer.
3 Connect the rear speaker cable to the black connector on the back of your computer.
4 For type 6 connectors only, connect the side speaker cable to the gray connector on
the back of your computer.
5 Connect the center speaker and subwoofer speaker cable to the gold connector on the
back of your computer.
OUT
IN
