8.

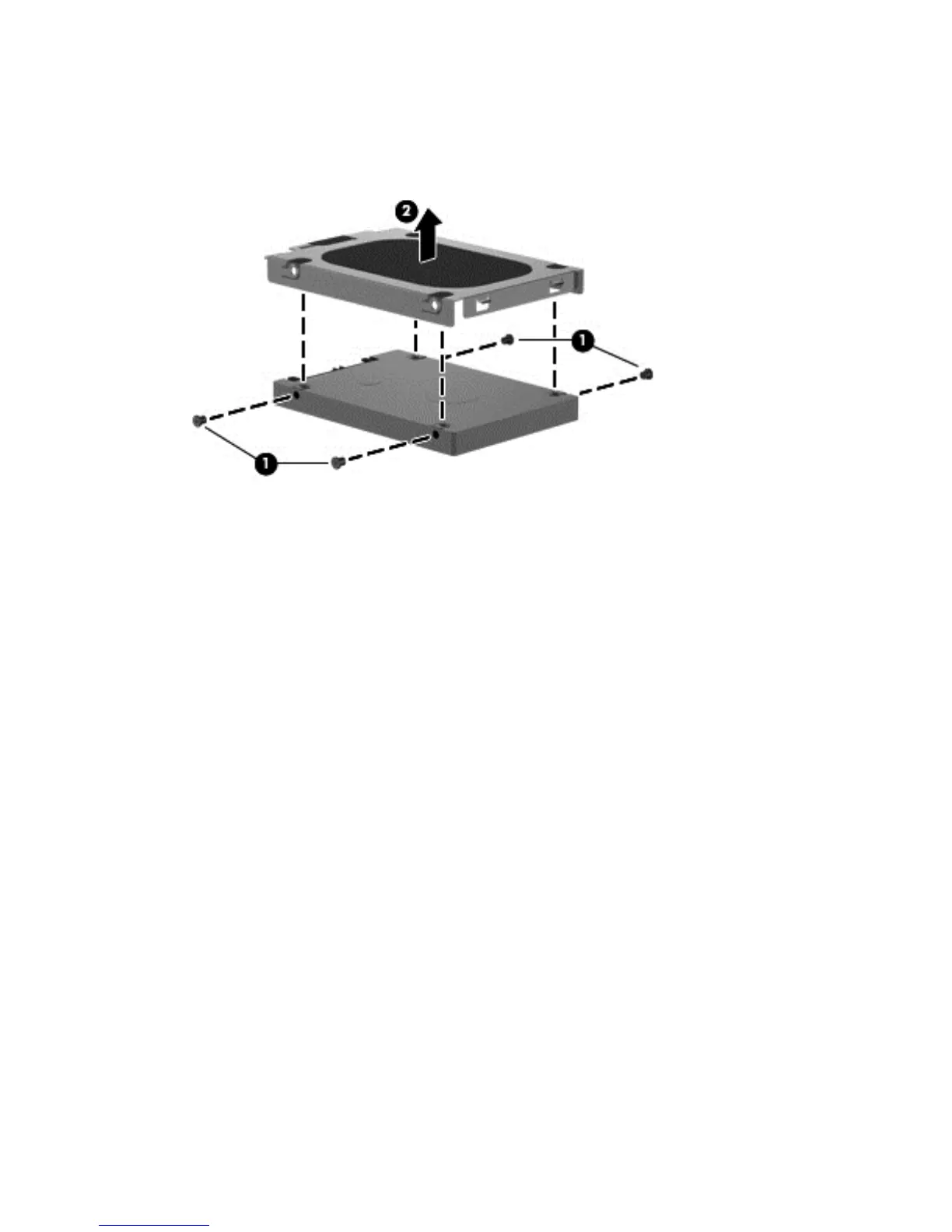

To replace the hard drive bracket, remove the four Phillips PM3.0×4.0 screws
(1)
that secure the
hard drive bracket to the hard d
rive
9.
Grasp the two attached Mylar
tabs and pull the br
acket straight up to remove it from th
e hard
drive
(2)
.
Reverse this procedure to
install the hard drive.
38
Chapter 4 Remova
l and replacement procedures
45
47
Table of Contents
Default Chapter
5
Table of Contents
5
1 Product Description
9
2 External Component Identification
13
Top Components
13
Display Components
13
Keys
14
Lights
15
Touchpad Components
16
Front Components
17
Left-Side Components
17
Right-Side Components
18
Bottom Components
19
Wireless Antennas
21
Additional Hardware Components
22
3 Illustrated Parts Catalog
23
Serial Number Label
23
Computer Major Components
24
Display Assembly Components
27
Plastics Kit
29
Mass Storage Devices
30
Miscellaneous Parts
31
Sequential Part Number Listing
31
4 Removal and Replacement Procedures
35
Preliminary Replacement Requirements
35
Tools Required
35
Service Considerations
35
Plastic Parts
35
Cables and Connectors
36
Drive Handling
36
Grounding Guidelines
37
Electrostatic Discharge Damage
37
Packaging and Transporting Guidelines
38
Workstation Guidelines
38
Equipment Guidelines
39
Component Replacement Procedures
40
Serial Number Label
40
Computer Feet
41
Battery
42
Sim
43
Hard Drive
44
Memory Module
47
RTC Battery
49
Keyboard
50
Top Cover
53
Speaker Assembly
56
Mini System Board (Left)
58
Mini System Board (Right)
60
Power Cable
62
WLAN Module
63
WWAN Module
65
Power Button Board
67
Display Assembly
69
Fan/Heat Sink Assembly
75
System Board
81
5 Setup Utility (BIOS)
83
Starting Setup Utility
83
Using Setup Utility
84
Changing the Language of Setup Utility
84
Navigating and Selecting in Setup Utility
84
Display System Information
85
Restoring Default Settings in Setup Utility
85
Exiting Setup Utility
86
Setup Utility Menus
86
Main Menu
86
Security Menu
86
System Configuration Menu
87
Diagnostics Menu
87
Updating the BIOS
89
Determining the BIOS
89
Downloading a BIOS Update
89
6 Specifications
91
Computer Specifications
91
13.3-Inch Display Specifications
92
Hard Drive Specifications
93
External Blu-Ray ROM DVD±RW Supermulti Double-Layer Drive Specifications
94
External DVD±RW and CD-RW Supermulti Double-Layer Combo Drive Specifications
95
7 Backup and Recovery
96
Creating Recovery Discs
97
Backing up Your Information
98
Using Windows Backup and Restore
99
Using System Restore Points
99
When to Create Restore Points
99
Create a System Restore Point
99
Restore to a Previous Date and Time
100
Performing a Recovery
100
Recovering from the Recovery Discs
100
Recovering from the Dedicated Recovery Partition (Select Models Only)
101
8 Connector Pin Assignments
102
Audio-In (Microphone)
102
Audio-Out (Headphone)
102
External Monitor
102
Hdmi
104
Network)
105
Universal Serial Bus
105
9 Power Cord Set Requirements
106
Requirements for All Countries
106
Requirements for Specific Countries and Regions
107
10 Recycling
108
Battery
108
Display
108
