3. Turn the computer display-side up with the front toward you.
4. Open the computer as far as possible.

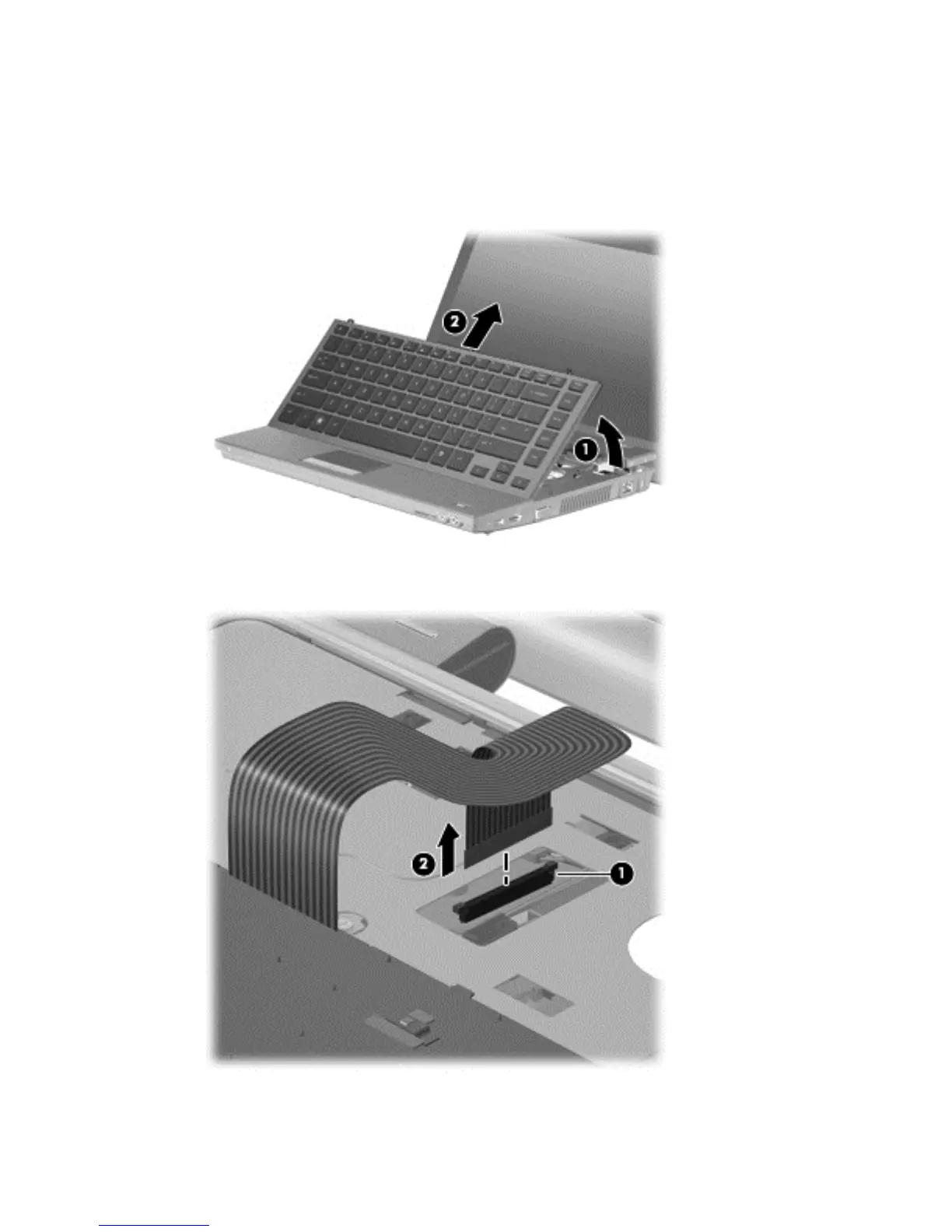

5. Release the tabs along the top (1) edge of the keyboard using a thin flat-bladed screwdriver.
6. Lift the top edge of the keyboard, and set the keyboard back towards the display (2).
7. Release the zero insertion force (ZIF) connector (1) to which the keyboard cable is attached and
disconnect the keyboard cable (2) from the system board.
8. Remove the keyboard.
Component replacement procedures 43
