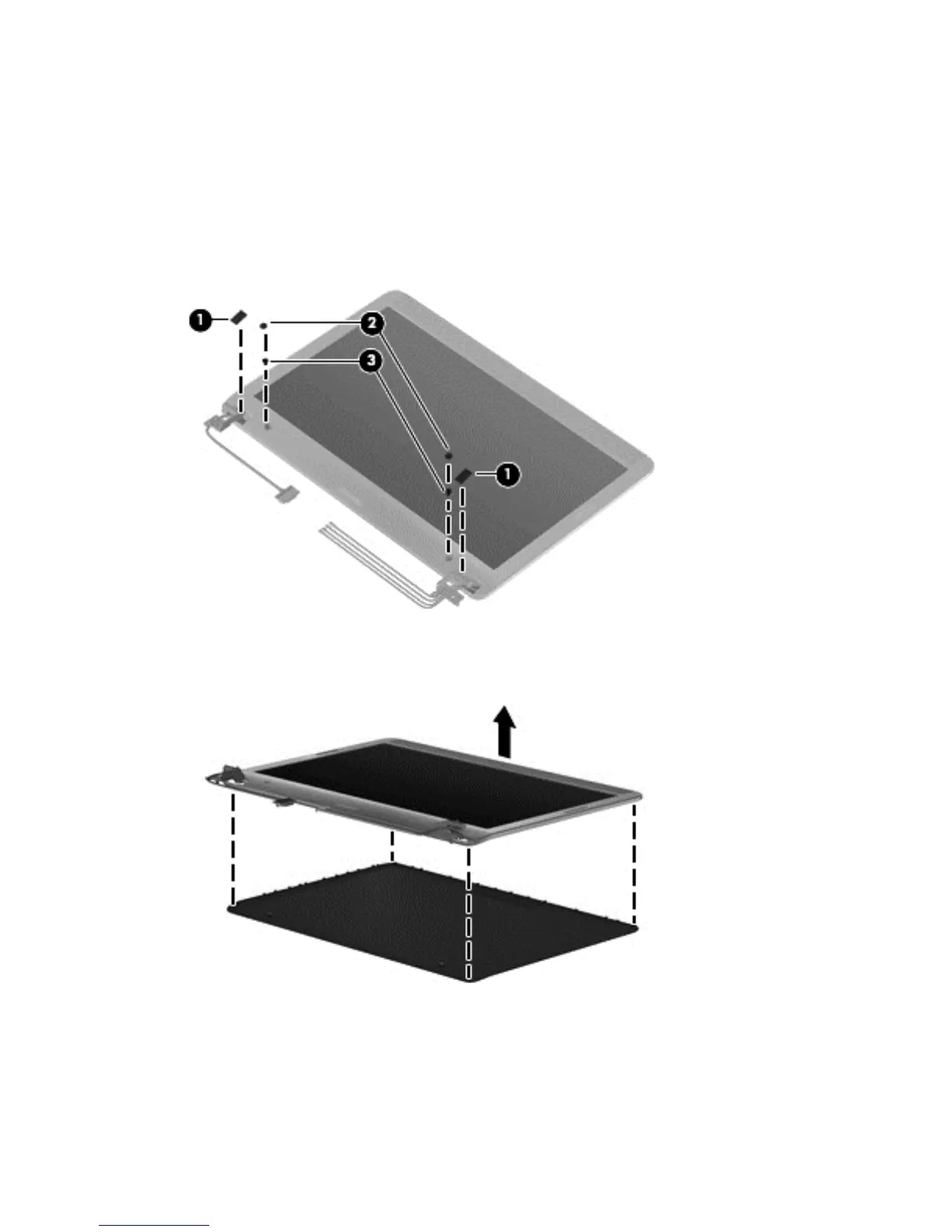

8. To replace any of the display assembly internal components, remove the following screw covers
and screws:
(1) Two rectangle mylar screw covers on the display bezel bottom edge
(2) Two round mylar screw covers on the display bezel bottom edge
(3) Two Phillips PM2.5×4.0 screws
The display screw covers are included in the rubber kit, spare part number 619452-001.
9. Lift up and remove the display back cover. The back cover is available using spare part number
619436-001.
Reverse this procedure to install the display back cover.
10. To replace the display panel, remove the two Phillips 2.5x3.0 screws from each hinge (1) and lift
up to remove each display panel hinge (2).
64 Chapter 4 Removal and replacement procedures
