8.

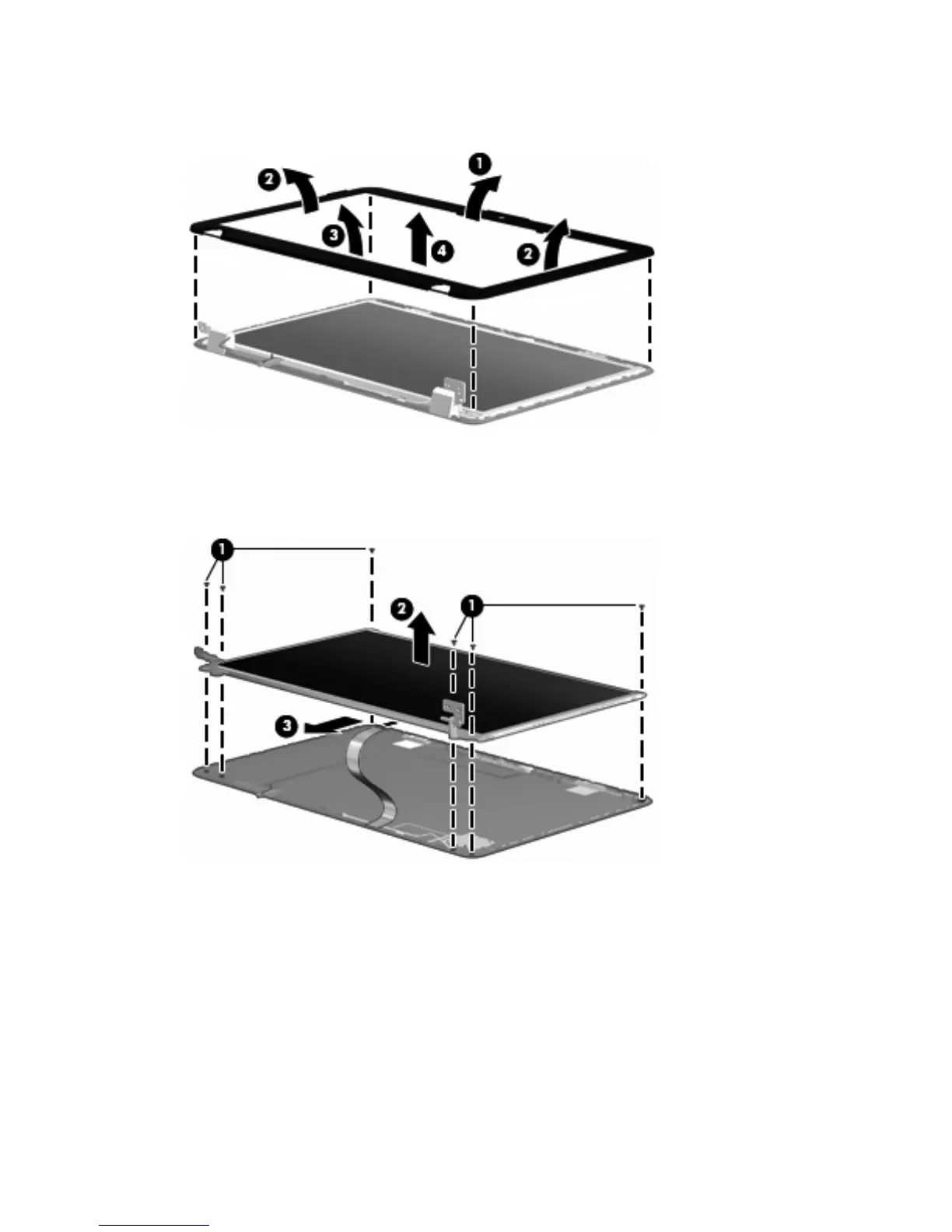

Remove the display bezel (4). The display bezel is available using spare part number
603651-001.
9. To replace the display panel, remove the six screws (1) from the display hinges.
10. Separate the display panel from the display enclosure (2), and then disconnect the display LED
cable (3) from the display panel cable. The display panel spare part number is 559130-001.
11. To replace the display hinges, remove the three screws (1) that secure each display hinge to the
display panel.
68 Chapter 4 Removal and replacement procedures ENWW
