5–44 Maintenance and Service Guide
Removal and Replacement Procedures

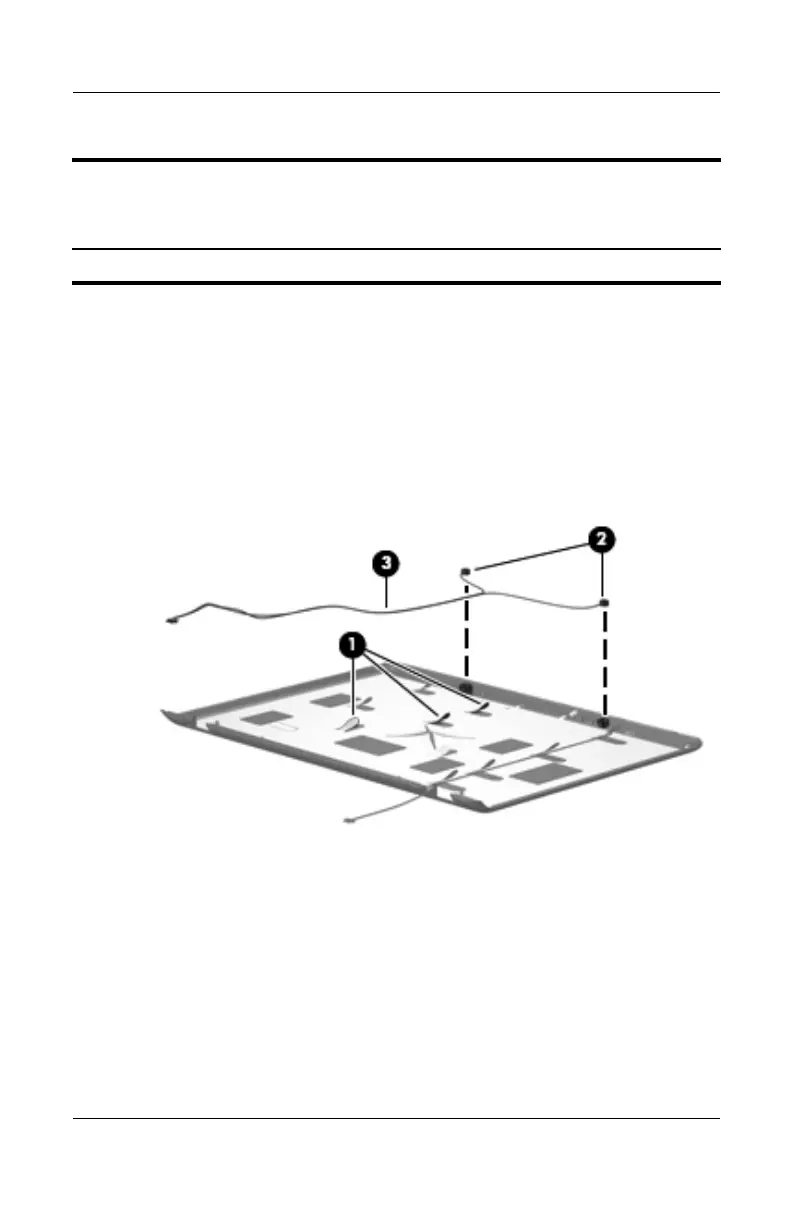

28. If it is necessary to replace the microphones and cables,
release the retention tabs 1 built into the display enclosure
that secure the microphone cables to the display enclosure.
29. Remove the microphone receivers 2 from the clips in the
display enclosure.
30. Remove the microphone cables 3 from the display enclosure.
Removing the Microphones
Display Assembly Subcomponents
Spare Part Number Information
Microphone 431393-001
