HP PAVILION DV7

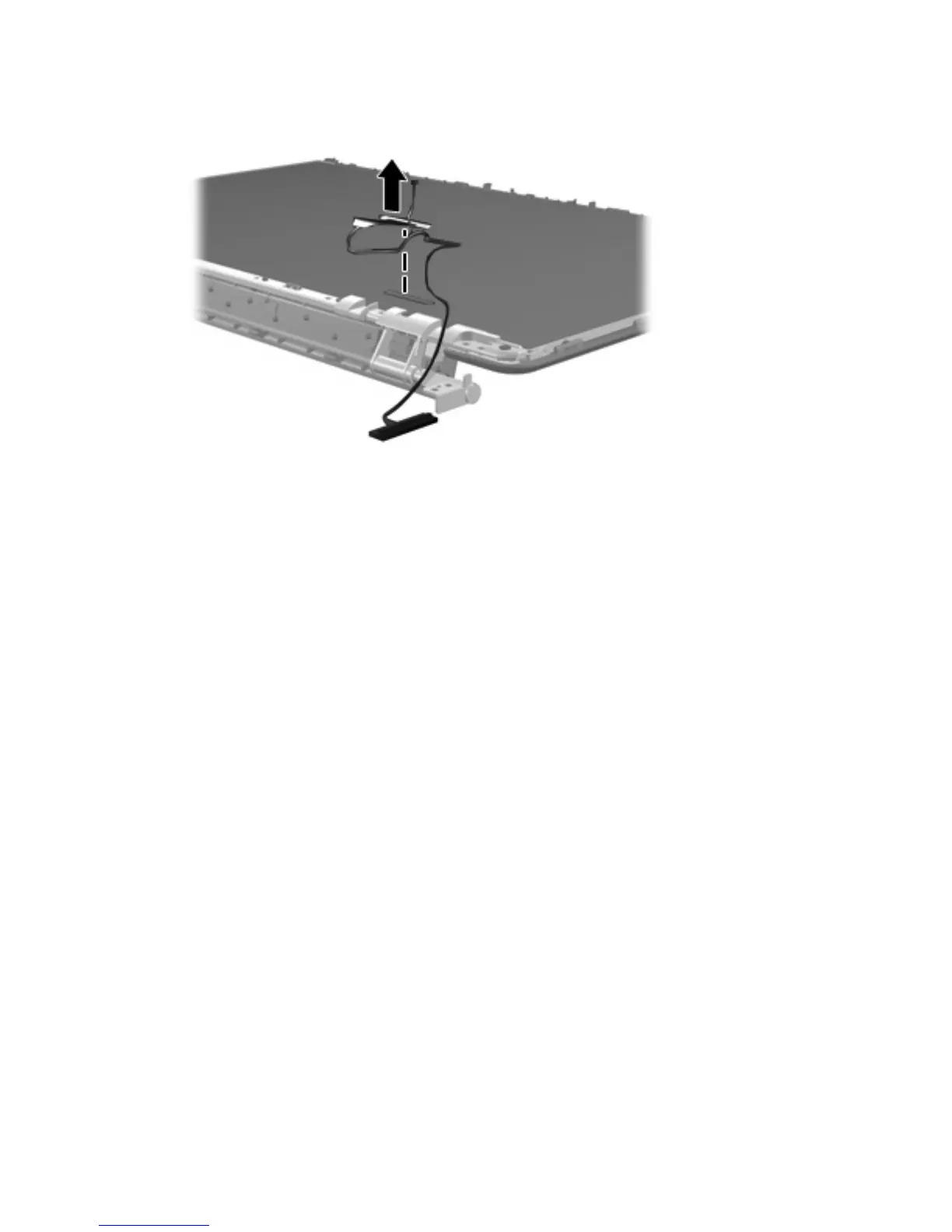

15. Disconnect the display panel cable from the display panel. The display panel cable is available
using spare part number 516307-001.
16. If it is necessary to replace the display hinges, remove the six Phillips PM2.5×4.0 screws (1) that
secure the display hinges to the top of the display panel.
17. Remove the four Phillips PM 2.0×3.0 screws that secure the hinges to the sides of the display
panel (2).
68 Chapter 4 Removal and replacement procedures
