HP Pavilion dv9500 - Entertainment Notebook PC Maintenance And Service Guide

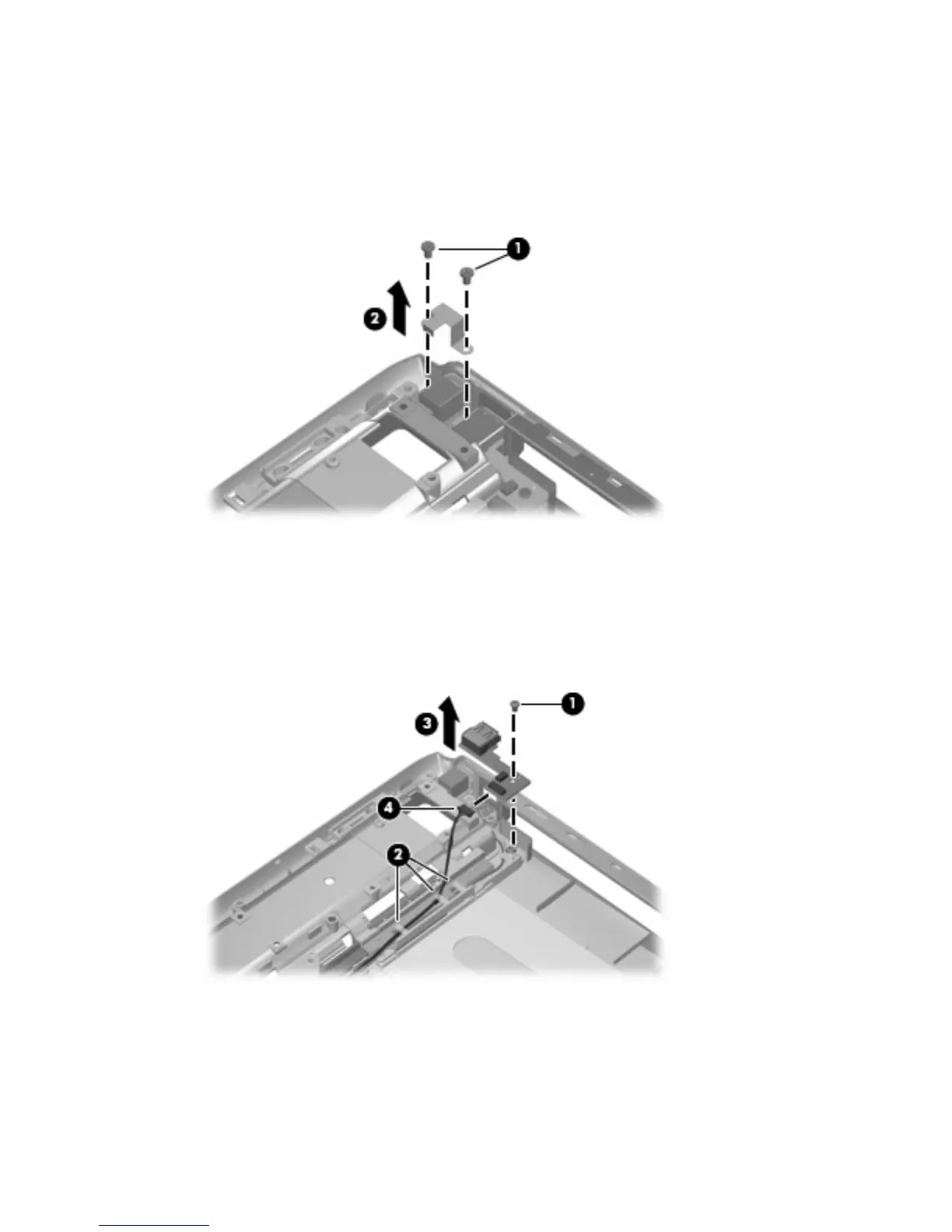

Remove the rear USB board:
1. Remove the two silver Phillips PM2.5×5.0 screws (1) that secure the power connector bracket to
the computer.
2. Remove the power connector bracket (2). The power connector bracket is available using spare
part number 432985-001.
3. Remove the silver Phillips PM2.5×5.0 screw (1) that secures the rear USB board to the base
enclosure.
4. Remove the rear USB board cable from the clips (2) built into the base enclosure.
5. Release the rear USB board (3) from the base enclosure as far as the rear USB board cable allows.
6. Disconnect the rear USB board cable (4) from the rear USB board.
7. Remove the rear USB board.
Reverse this procedure to install the rear USB board.
Component replacement procedures 91

HP Pavilion dv9500 - Entertainment Notebook PC Specifications

General

Processor	Intel Core 2 Duo
Memory	Up to 4 GB DDR2
Graphics	NVIDIA GeForce 8600M GS
Operating System	Windows Vista Home Premium
Audio	Altec Lansing speakers
HDMI Port	Yes
Chipset	Intel PM965 Express
Display Size	17.0 inch
Display Resolution	1440 x 900 (WXGA+)
Hard Drive	Up to 320 GB
Optical Drive	DVD±RW with Double Layer Support
Wireless	802.11a/b/g
Battery	6-cell Lithium-Ion
Weight	3.5 kg
USB Ports	3 x USB 2.0
