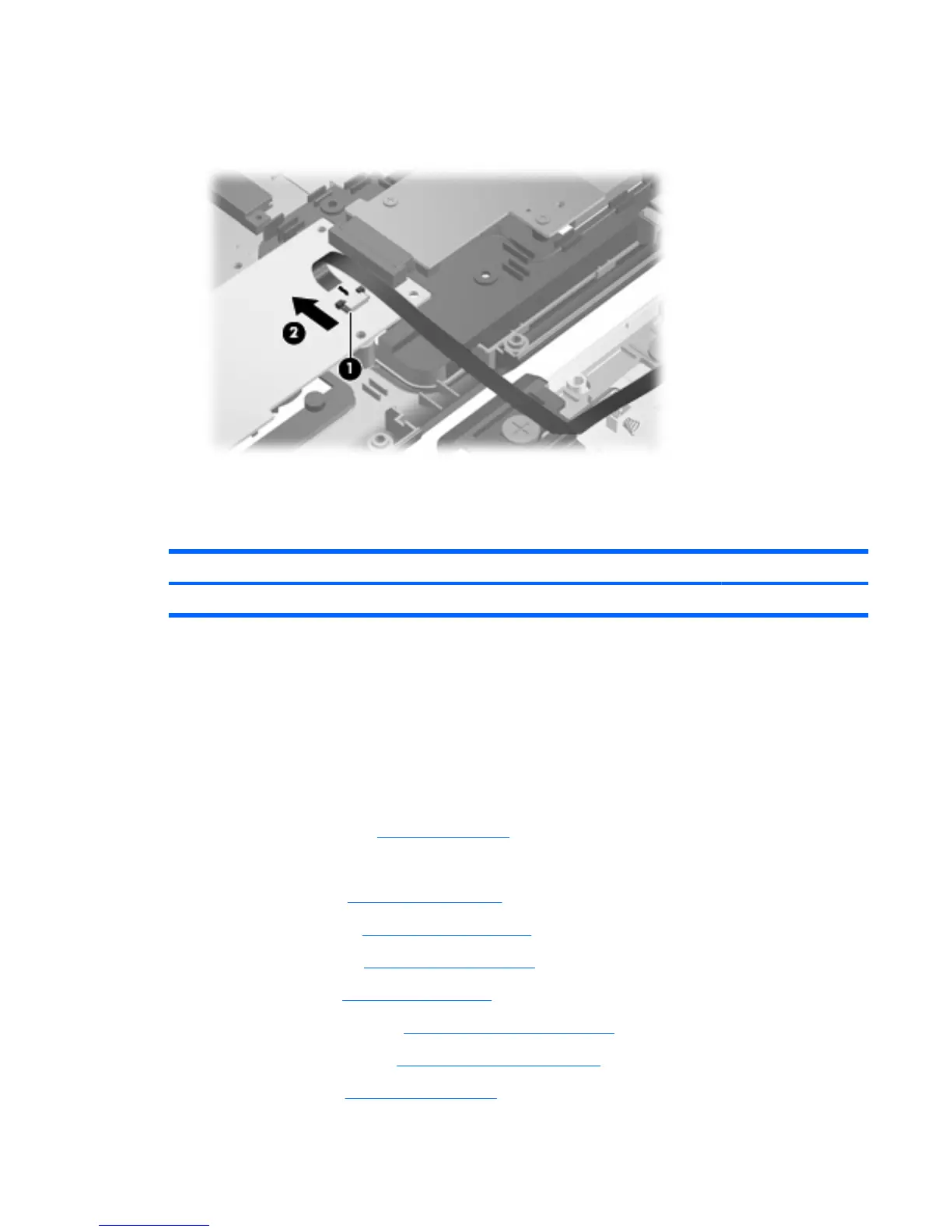

6. If it is necessary to replace the fingerprint reader board cable, release the ZIF connector (1) to
which the cable is connected and disconnect the cable (2) from the system board. The fingerprint
reader board cable is included in the Cable Kit, spare part number 448015-001.
Reverse this procedure to install the ExpressCard assembly and the fingerprint reader board cable.
Top cover trim
Description Spare part number
Top cover trim 432978-001
Before removing the top cover trim, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4. Remove the battery (see
Battery on page 47).
5. Remove the following components:
a. Hard drive (see
Hard drive on page 52)
b. Optical drive (see
Optical drive on page 59)
c. Switch cover (see
Switch cover on page 61)
d. Keyboard (see
Keyboard on page 63)
e. Speaker assembly (see
Speaker assembly on page 66)
f. Display assembly (see
Display assembly on page 69)
g. Top cover (see
Top cover on page 75)
Component replacement procedures 87
