HP Pavilion dv9500 - Entertainment Notebook PC Maintenance And Service Guide

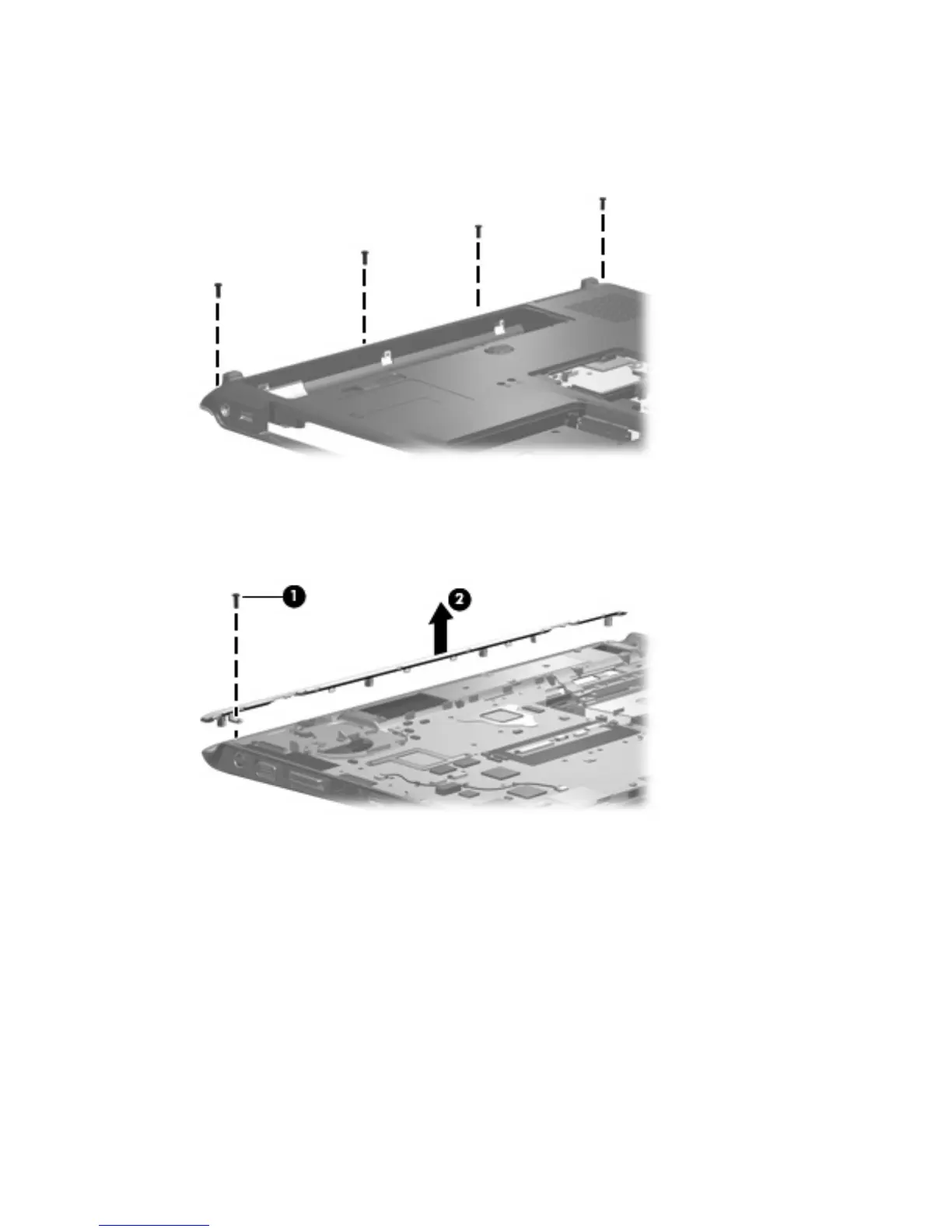

Remove the top cover trim:
1. Turn the computer upside down with the front toward you.
2. Remove the four Phillips PM2.5×8.0 screws that secure the top cover trim to the computer.
3. Turn the computer right-side up with the front toward you.
4. Remove the Phillips PM2.5×8.0 screw (1) that secures the top cover trim to the computer.
5. Remove the top cover trim (2).
6. Remove the top cover trim.
Reverse this procedure to install the top cover trim.
88 Chapter 4 Removal and replacement procedures

HP Pavilion dv9500 - Entertainment Notebook PC Specifications

General

Processor	Intel Core 2 Duo
Memory	Up to 4 GB DDR2
Graphics	NVIDIA GeForce 8600M GS
Operating System	Windows Vista Home Premium
Audio	Altec Lansing speakers
HDMI Port	Yes
Chipset	Intel PM965 Express
Display Size	17.0 inch
Display Resolution	1440 x 900 (WXGA+)
Hard Drive	Up to 320 GB
Optical Drive	DVD±RW with Double Layer Support
Wireless	802.11a/b/g
Battery	6-cell Lithium-Ion
Weight	3.5 kg
USB Ports	3 x USB 2.0
