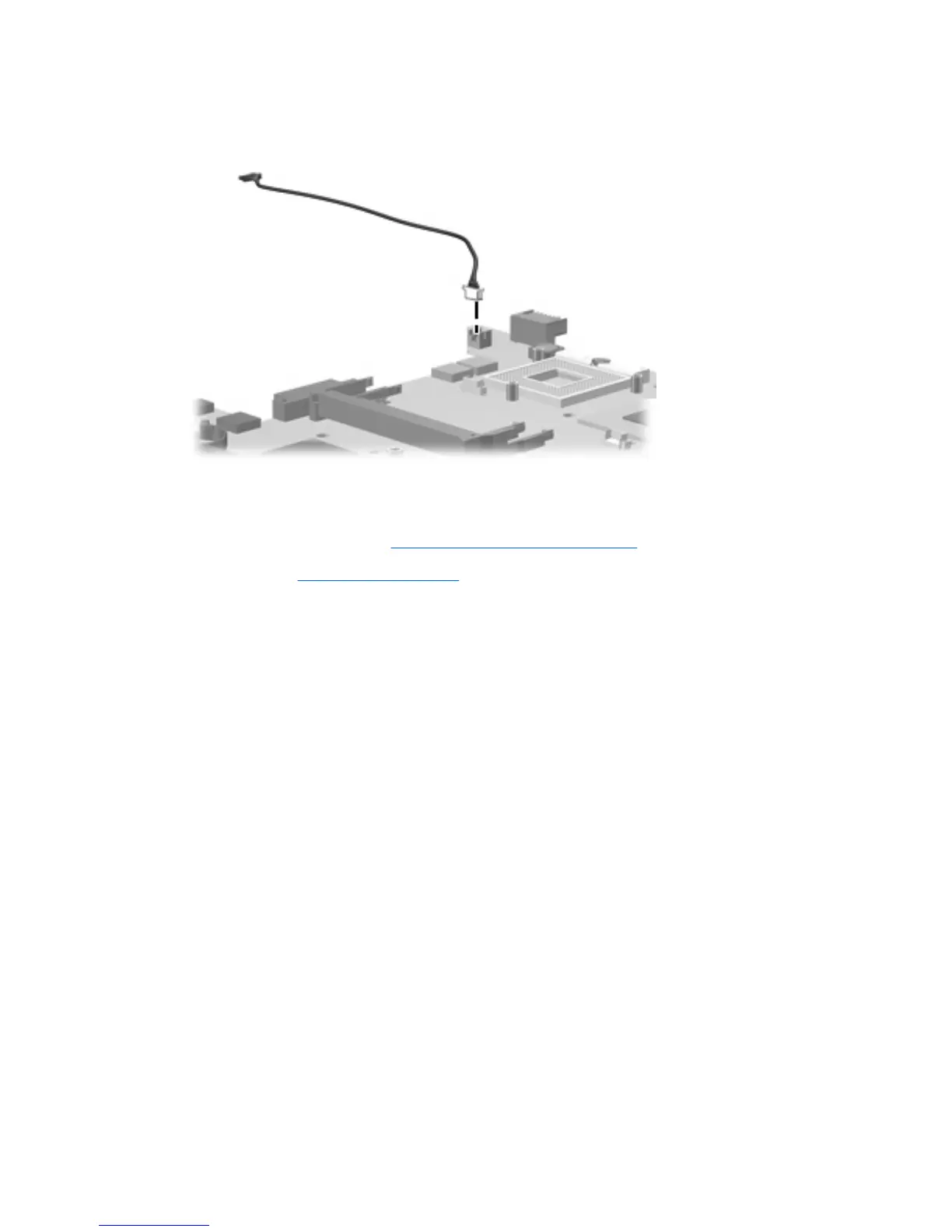

12. Disconnect the rear USB board cable from the system board. The rear USB board cable is included
with the rear USB board spare part kit and is also included in the Cable Kit, spare part number
448015-001.
When replacing the system board, be sure that the following components are removed from the defective
system board and installed on the replacement system board:
●
Fan/heat sink assembly (see
Fan/heat sink assembly on page 99)
●
Processor (see
Processor on page 103)
Reverse the preceding procedure to install the system board.
96 Chapter 4 Removal and replacement procedures

HP Pavilion dv9500 - Entertainment Notebook PC Specifications

General

Processor	Intel Core 2 Duo
Memory	Up to 4 GB DDR2
Graphics	NVIDIA GeForce 8600M GS
Operating System	Windows Vista Home Premium
Audio	Altec Lansing speakers
HDMI Port	Yes
Chipset	Intel PM965 Express
Display Size	17.0 inch
Display Resolution	1440 x 900 (WXGA+)
Hard Drive	Up to 320 GB
Optical Drive	DVD±RW with Double Layer Support
Wireless	802.11a/b/g
Battery	6-cell Lithium-Ion
Weight	3.5 kg
USB Ports	3 x USB 2.0
