g. Top cover (see Top cover on page 75)
h. Wireless switch board (see
Wireless switch board on page 80)
i. Audio board (see
Audio board on page 97)
j. Front USB board (see
Front USB board on page 84)
k. Top cover trim (see
Top cover trim on page 87)
l. System board (see
System board on page 92)
m. Fan/heat sink assembly (see
Fan/heat sink assembly on page 99)

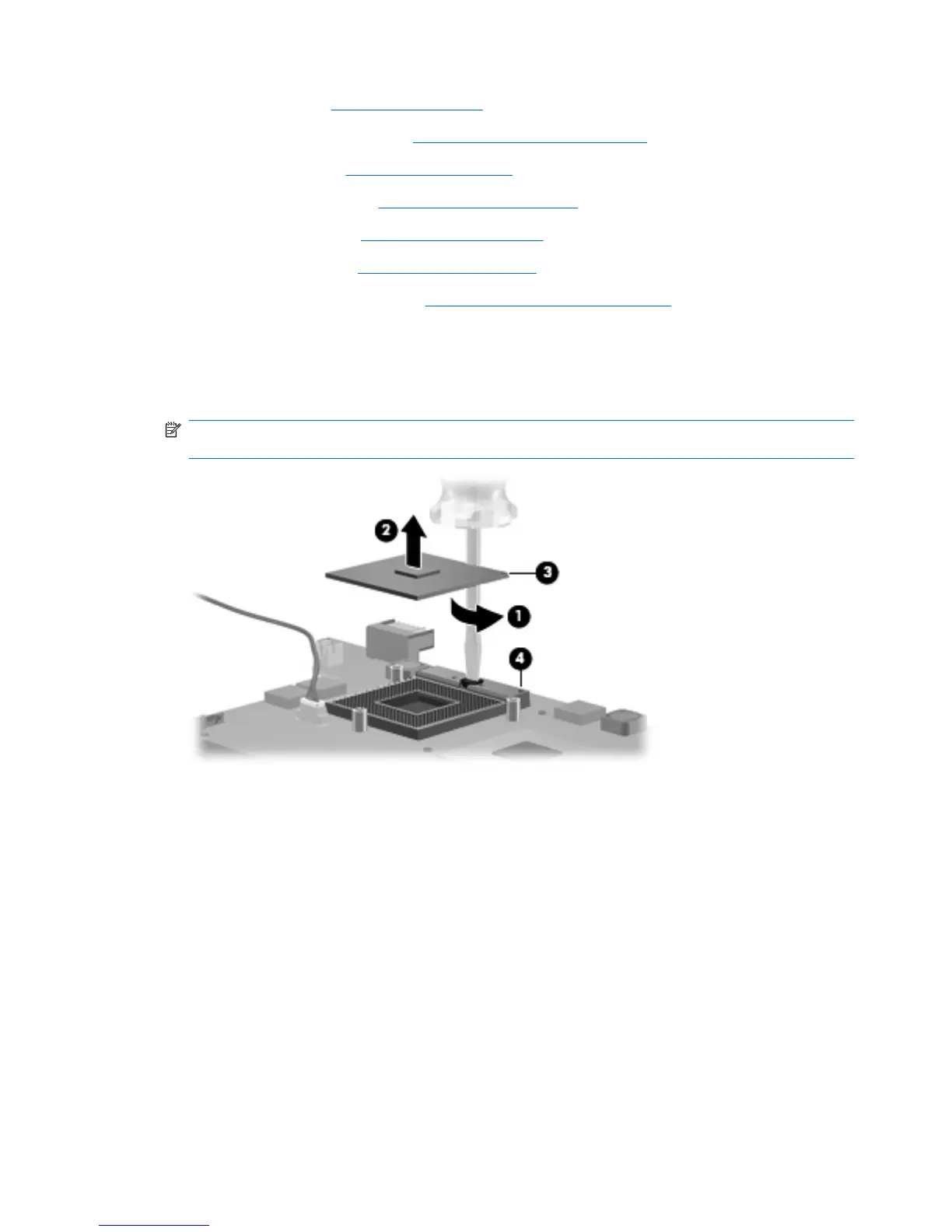

Remove the processor:
1. Turn the processor locking screw (1) one-half turn counterclockwise until you hear a click.
2. Lift the processor (2) straight up and remove it.
NOTE: The gold triangle (3) on the processor must be aligned with the triangle icon (4) embossed
on the processor slot when you install the processor.
Reverse this procedure to install the processor.
