HP Pavilion dv9500 - Entertainment Notebook PC Maintenance And Service Guide

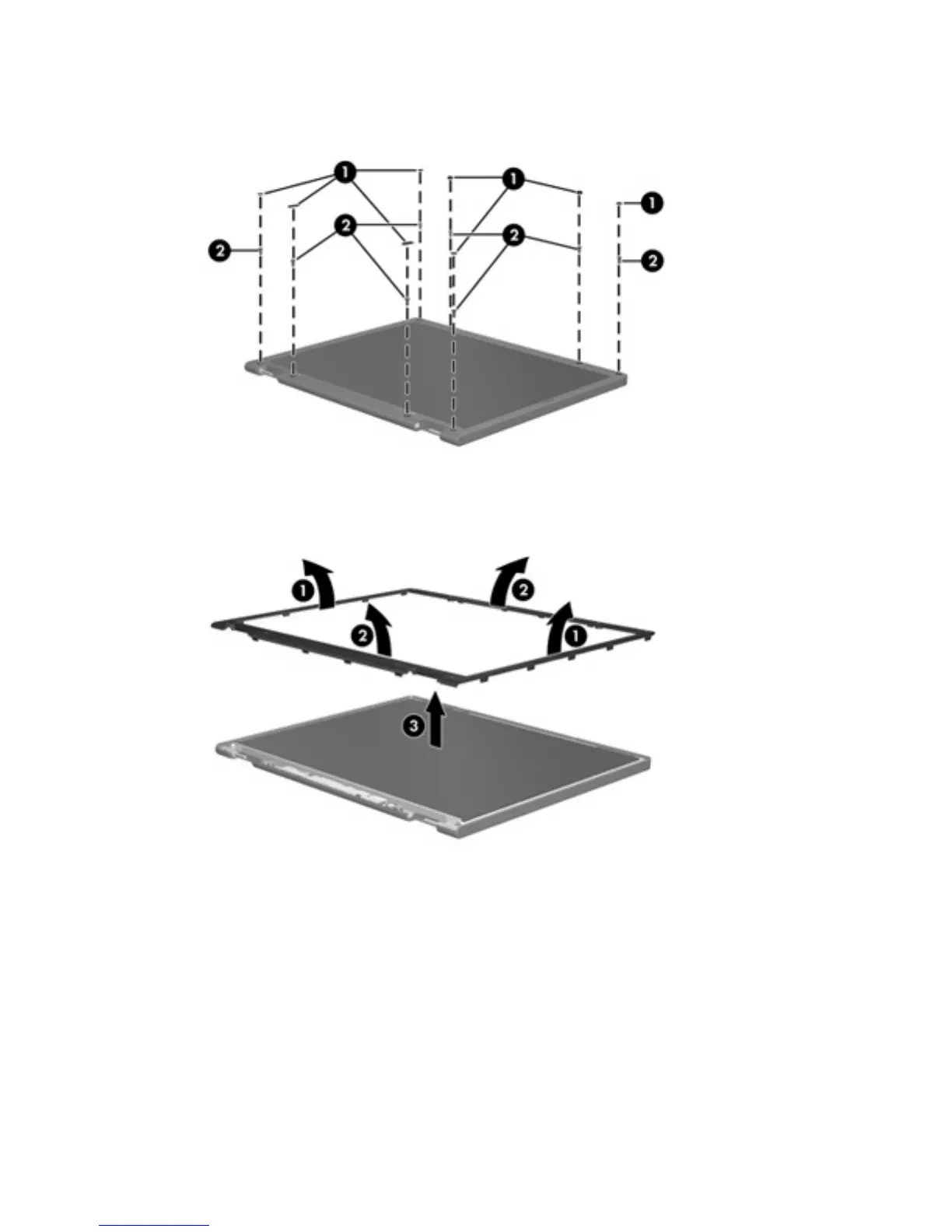

Perform the following steps to disassemble the display assembly:
1. Remove all screw covers (1) and screws (2) that secure the display bezel to the display assembly.
2. Lift up and out on the left and right inside edges (1) and the top and bottom inside edges (2) of the
display bezel until the bezel disengages from the display assembly.
3. Remove the display bezel (3).
Display 157

HP Pavilion dv9500 - Entertainment Notebook PC Specifications

General

Processor	Intel Core 2 Duo
Memory	Up to 4 GB DDR2
Graphics	NVIDIA GeForce 8600M GS
Operating System	Windows Vista Home Premium
Audio	Altec Lansing speakers
HDMI Port	Yes
Chipset	Intel PM965 Express
Display Size	17.0 inch
Display Resolution	1440 x 900 (WXGA+)
Hard Drive	Up to 320 GB
Optical Drive	DVD±RW with Double Layer Support
Wireless	802.11a/b/g
Battery	6-cell Lithium-Ion
Weight	3.5 kg
USB Ports	3 x USB 2.0
