HP Pavilion dv9500 - Entertainment Notebook PC Maintenance And Service Guide

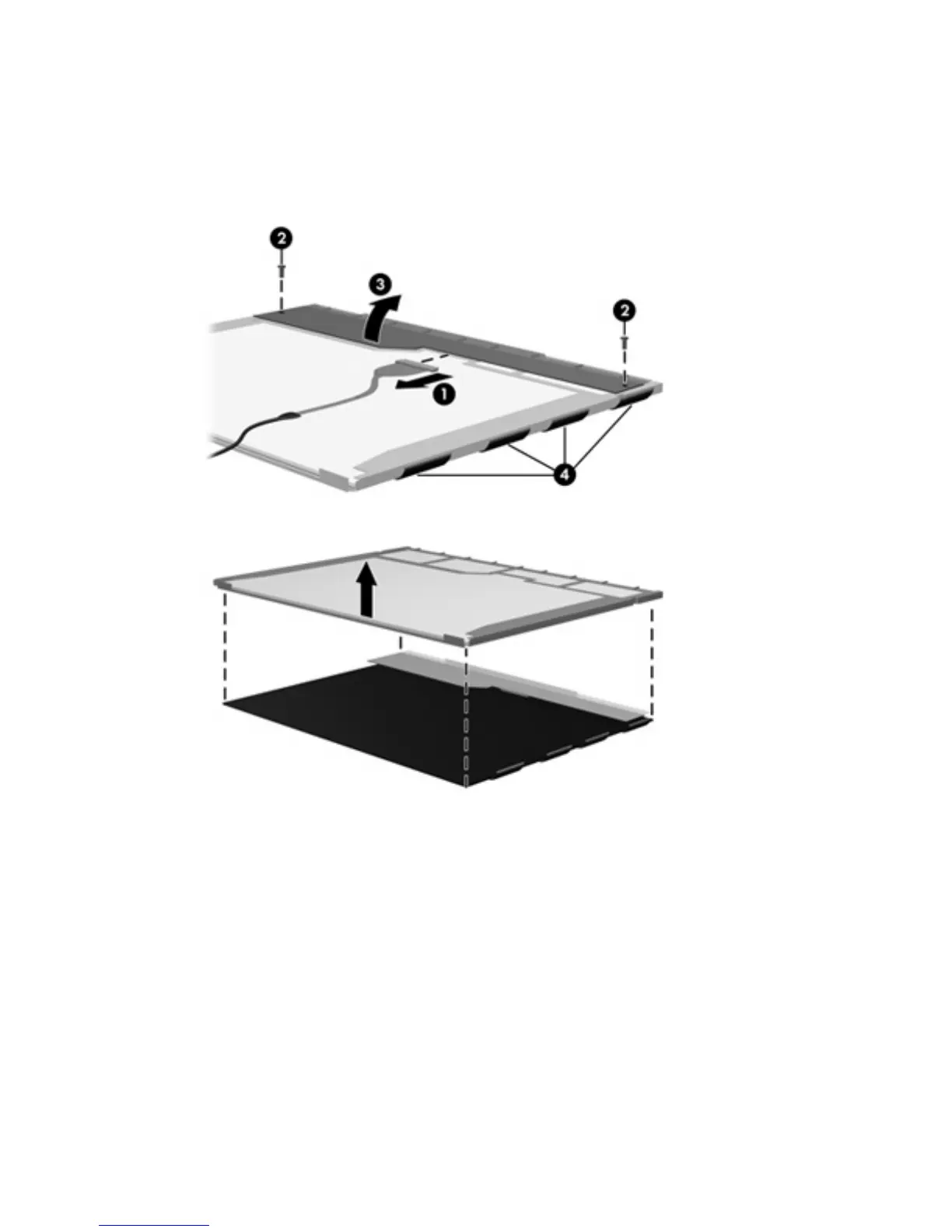

19. Disconnect the display cable (1) from the LCD panel.
20. Remove the screws (2) that secure the LCD panel to the display rear panel.
21. Release the LCD panel (3) from the display rear panel.
22. Release the tape (4) that secures the LCD panel to the display rear panel.
23. Remove the LCD panel.
24. Recycle the LCD panel and backlight.
Display 161

HP Pavilion dv9500 - Entertainment Notebook PC Specifications

General

Processor	Intel Core 2 Duo
Memory	Up to 4 GB DDR2
Graphics	NVIDIA GeForce 8600M GS
Operating System	Windows Vista Home Premium
Audio	Altec Lansing speakers
HDMI Port	Yes
Chipset	Intel PM965 Express
Display Size	17.0 inch
Display Resolution	1440 x 900 (WXGA+)
Hard Drive	Up to 320 GB
Optical Drive	DVD±RW with Double Layer Support
Wireless	802.11a/b/g
Battery	6-cell Lithium-Ion
Weight	3.5 kg
USB Ports	3 x USB 2.0
