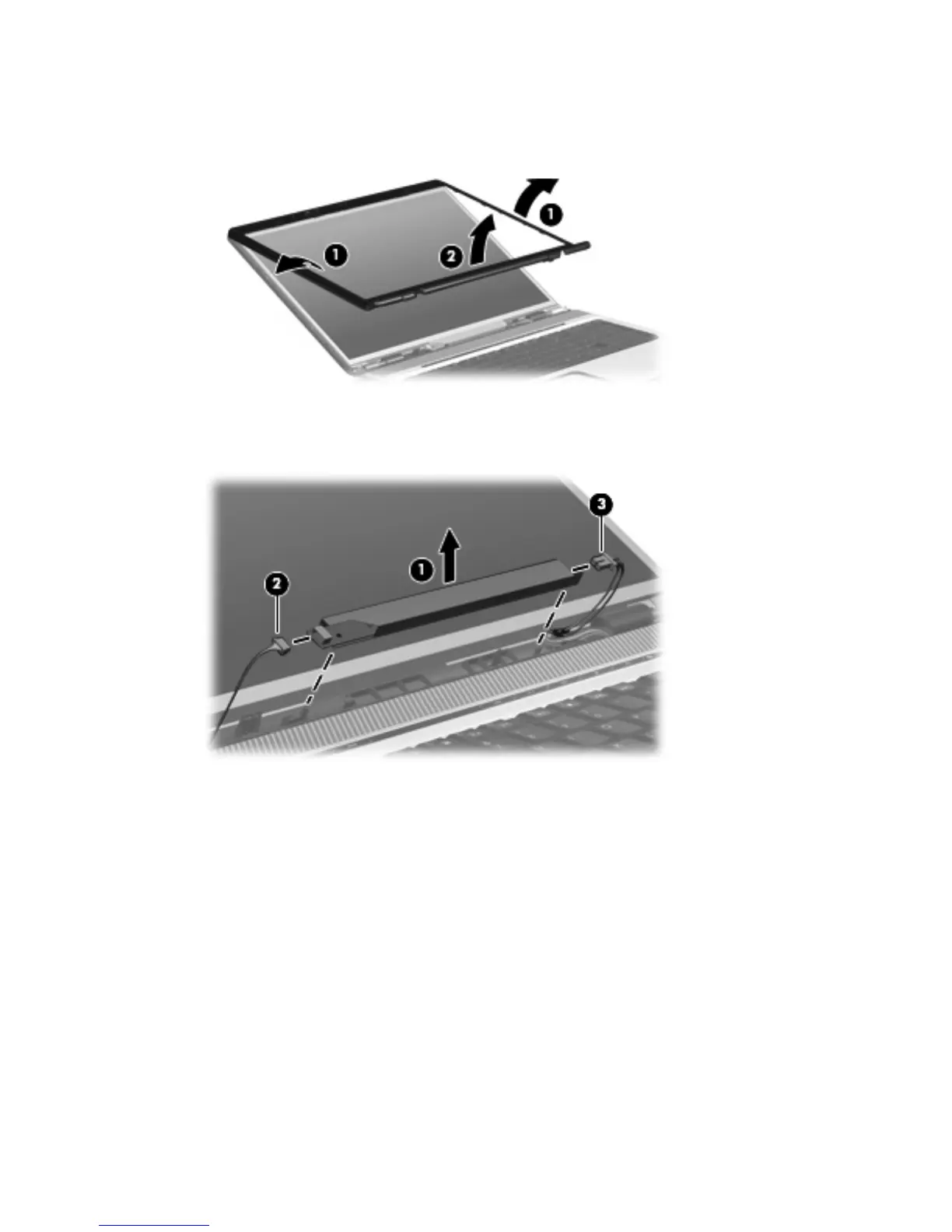

5. Flex the inside edges of the left and right sides (1) and the bottom edge (2) of the display bezel
until the bezel disengages from the display enclosure.
6. Release the display inverter (1) as far as the display panel cable and the backlight cable allow.
7. Disconnect the display panel cable (2) and the backlight cable (3) from the display inverter.
8. Remove the display inverter.
Reverse this procedure to install the display inverter.
Component replacement procedures 51
