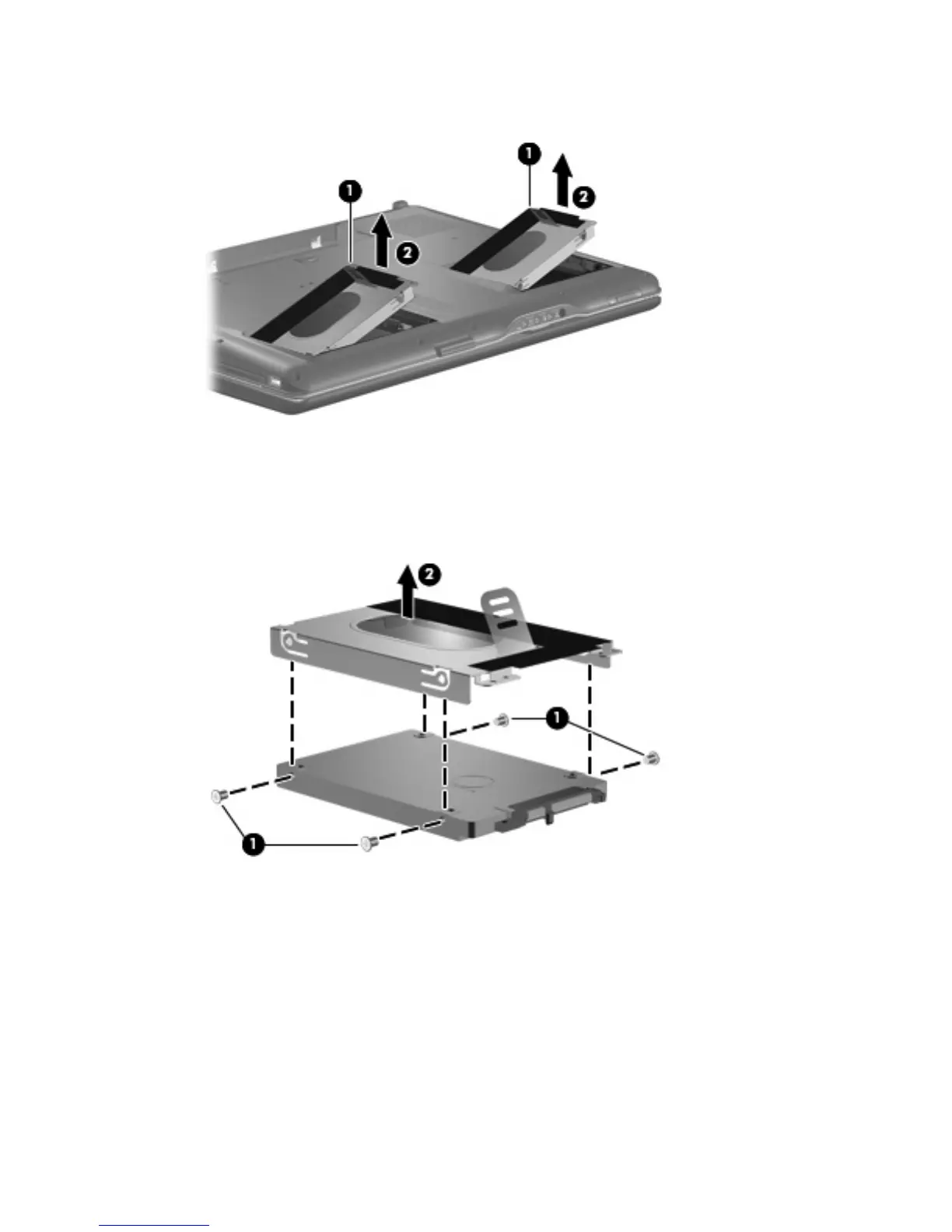

4. Use the Mylar tab (1) to lift the hard drive (2) until it disconnects from the computer.
5. Remove the hard drive from the hard drive bay.
6. If it is necessary to replace the hard drive bracket, remove the four Phillips PM3.0×4.0
screws (1) that secure the hard drive bracket to the hard drive.
7. Lift the bracket (2) straight up to remove it from the hard drive.
Reverse this procedure to reassemble and install the hard drive.
Component replacement procedures 53

HP Pavilion dv9500 - Entertainment Notebook PC Specifications

General

Processor	Intel Core 2 Duo
Memory	Up to 4 GB DDR2
Graphics	NVIDIA GeForce 8600M GS
Operating System	Windows Vista Home Premium
Audio	Altec Lansing speakers
HDMI Port	Yes
Chipset	Intel PM965 Express
Display Size	17.0 inch
Display Resolution	1440 x 900 (WXGA+)
Hard Drive	Up to 320 GB
Optical Drive	DVD±RW with Double Layer Support
Wireless	802.11a/b/g
Battery	6-cell Lithium-Ion
Weight	3.5 kg
USB Ports	3 x USB 2.0
