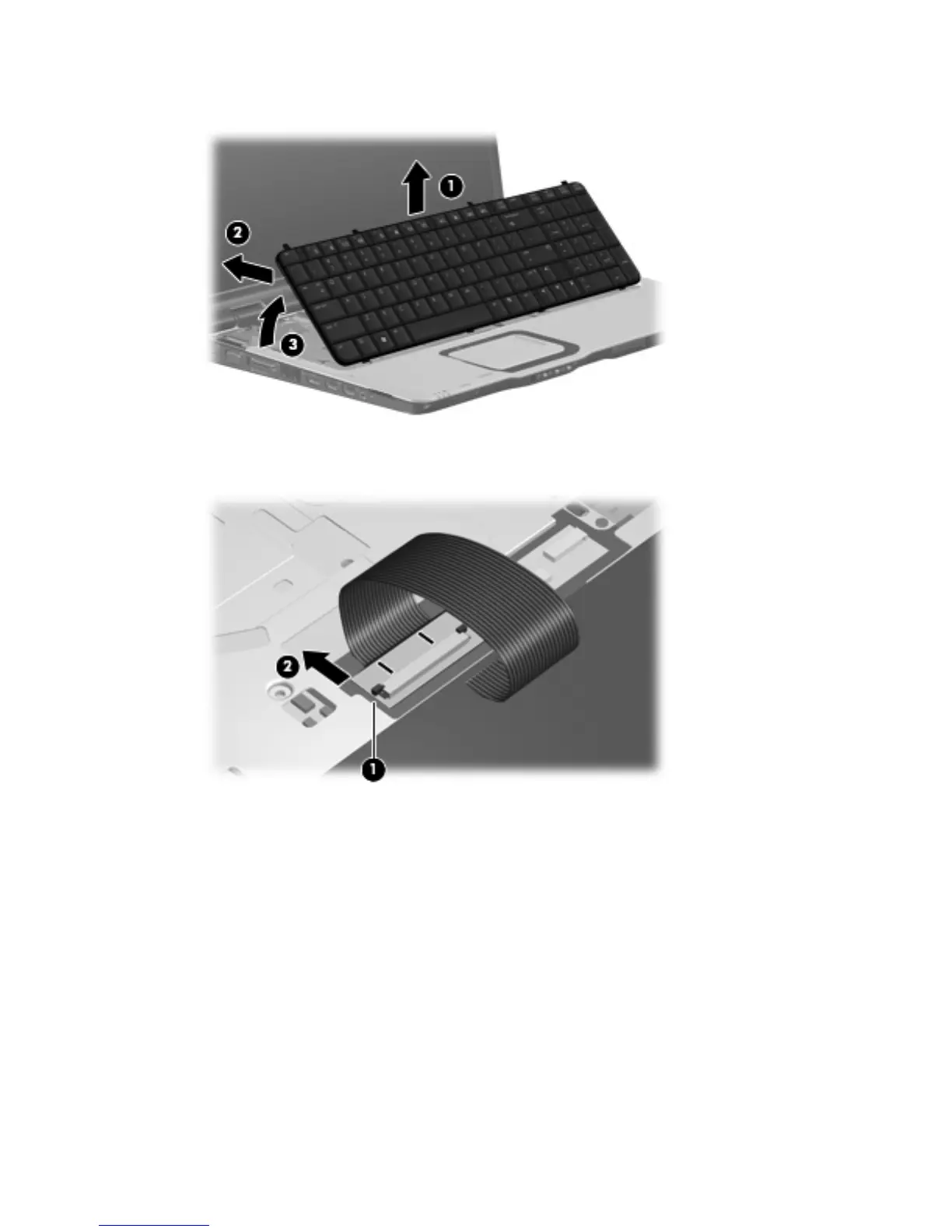

8. Swing the keyboard (3) up and forward until it rests on the palm rest.
9. Release the ZIF connector (1) to which the keyboard cable is attached and disconnect the keyboard
cable (2).
10. Remove the keyboard.
Reverse this procedure to install the keyboard.
